Description
The original Philips MFRC522 chip design circuit card reader is easy to use and low cost, and applies to the user equipment development, the reader and the development of advanced applications, and the need for the user RF card terminal design/production. This module can be directly loaded into various reader modules. It utilizes a voltage of 3.3V, through the SPI interface with simply a few wires. Directly connected with a CPU motherboard, the module can work in a stable and reliable manner as a distance card reader.
Specifications:
Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Supported card types: for mifare1 S50, for mifare1 S70, for mifare for Ultralight, for mifare Pro, for mifare Desfire
Data transfer rate: maximum 10Mbit/s
Environmental Operating temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Size: 40 x 60mm / 1.57 x 2.36in
Weight: 21g
Package Included:
1 x RFID Module
1 x Standard S50 Blank Card
1 x S50 Special-shaped Card
1 X Straight row pin
1 X Curved row pin
Specifications:
Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Supported card types: for mifare1 S50, for mifare1 S70, for mifare for Ultralight, for mifare Pro, for mifare Desfire
Data transfer rate: maximum 10Mbit/s
Environmental Operating temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Size: 40 x 60mm / 1.57 x 2.36in
Weight: 21g
Package Included:
1 x RFID Module
1 x Standard S50 Blank Card
1 x S50 Special-shaped Card
1 X Straight row pin
1 X Curved row pin

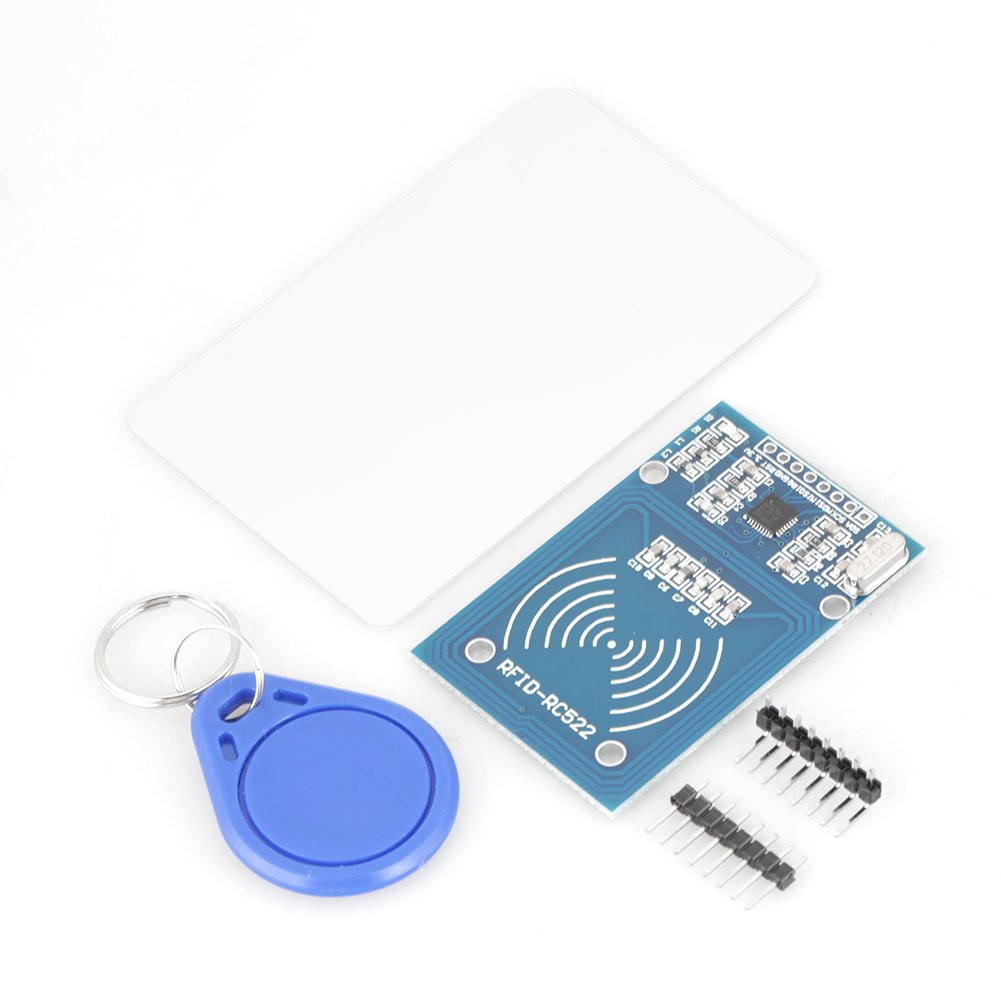

RC522 RFID RF IC Card Inductive Sensor Module + S50 White Smart Card + Key Ring for Arduino Raspberry Pi
