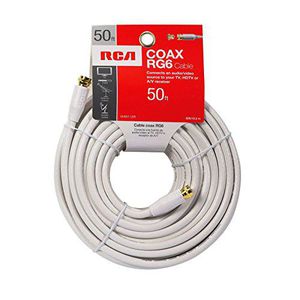

RCA VHW112R 50FT RG6 Coaxial Cable

how to terminate an rg6 RCA type coaxial compression connector materials required side cutter coaxial cable prep tool universal coaxial compression tool RG 6 RCA coaxial compression connector RG 6 coaxial cable step 1 cut the specified length of RG 6 coaxial cable and insert three quarters of an inch into the coaxial cable prep tool rotate in one direction two to three turns step two the coaxial cable will be scored in two stages remove the first stage exposing the center conductor remove the second stage exposing the foam insulation and steel braid fold back the steel braid towards the coaxial cable trim the center conductor a quarter of an inch using the side cutters step 3 insert the coaxial cable into the RG 6 RCA coaxial compression connector ensure the center conductor is kept straight while firmly pushing into the compression connector step 4 select the appropriate tip from the h
