The optimal parking aid - More safety and comfort for you

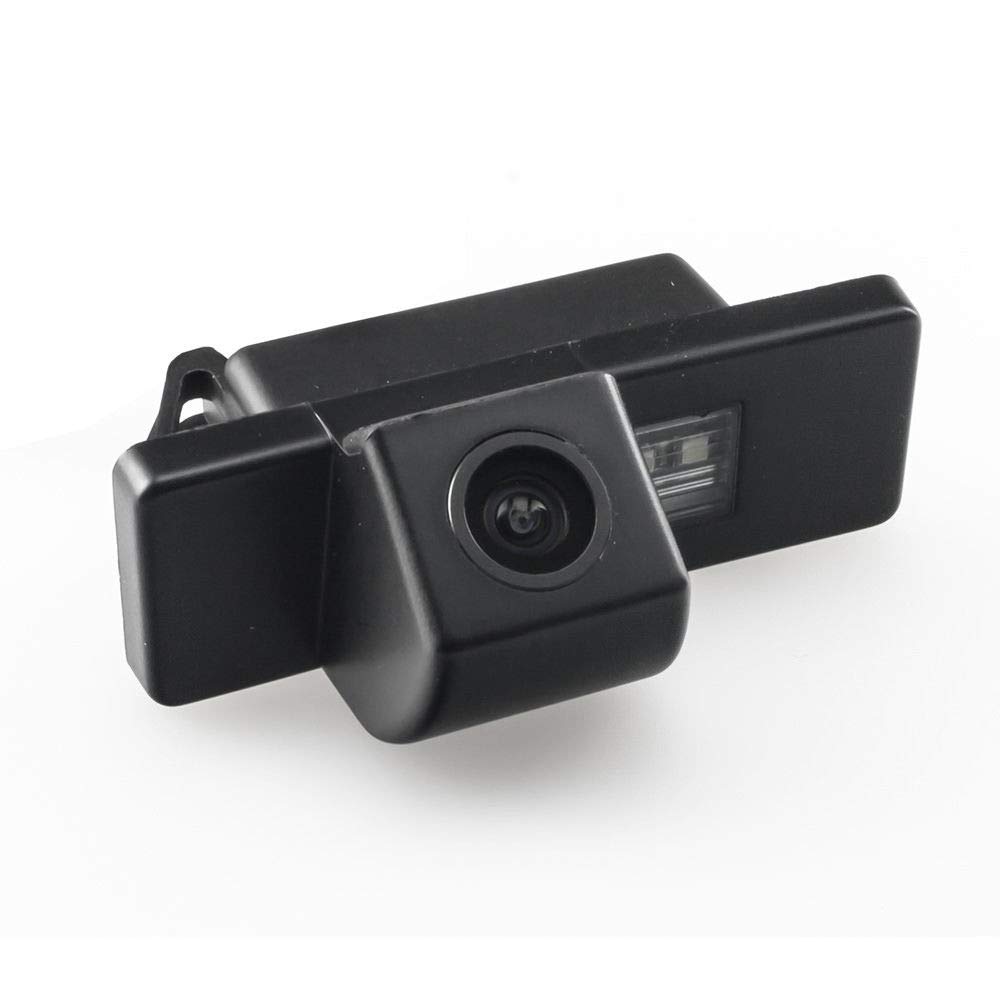

Our easy-to-install rear view camera can be easily retrofitted by replacing the license plate light, thereby a particularly inconspicuous installation is possible and the original appearance of the vehicle is maintained.
compatibility
Nissan Sunny (2011 - Onwards)
Nissan Qashqai (2005 - 2011)
Nissan X-Trial (2005 - 2011)
Nissan Pathfinder (2005 - 2011)
Nissan Navara (2005 - 2011)
Nissan Juke (2010 - Onwards)
Citroen C4 (2010 - Onwards)
Citroen C5 (2008 - Onwards)
Peugeot 307 (Hatchback Only | 2005 - 2008)
Image reproduction of rear view camera
The video signal is transmitted via the included video cable and so to a monitor, a retrofit navigation system (eg, Pioneer, Sony, Alpine , Kenwood, etc.), or via rear view camera when -Interface (optional) directly on the factory navigation system engaging the reverse gear automatically displayed on the navigation system.
power supply
Power is supplied via the 12V port on your car reversing light, so the camera automatically turns on when reverse gear.
Attention, please note:
Please check before buying whether size specifications and attachment points of the rear view camera with which your vehicle match.
Technical specifications
- Video output (RCA / RCA): 1.0 Vp-p composite video 75ohm
- Operating Voltage: 12V DC
- Cable length: 5 meters
- Colour: black / transparent
- Colour resolution: 420 TV lines
- Video standard: NTSC
- Distance lines: Yes
- Protection class: IP68
