Dear customer,Please must check the camera size and appearance before place a order, see if can fit your car license plate lamp place size and appearance! Because the same car model in different countries may have some difference,please check the camera size and compare the installation of your car carefully to avoid mistake.
This product could fit for all below models as expected:
Audi A3 | S3 (2004 - 2009)
Audi A3 (8P) 2004~2012
Audi A4 | S4 (2001 - 2007)
Audi A6 | S6 | A6L | RS6 | Avant | RS6+ (2005 - 2009)
Audi A8 | S8 (2003 - 2007)
Audi RS4 | Avant (2006 - 2008)
Audi TT 8N (2000 - 2006)
Audi Q7 (2007 - 2009)
Audi A6 C6 S6 2005~2009
Audi A4 B7 Typ 8E/8H 2004~2008
Technique Parameter:
1. TV system: NTSC (if you need PAL, please leave a message)
2. Resolution: 480/520 TV lines
3. Lens angle:170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75Ω
7. Image Device: 1/4 inch color
8. Sensing area: 5.78 x 4.19mm
9. Sync. system: internal
10.Power supply: DC 12V
11,White Balance: Auto
12.Waterproof Class: ip 66
13.Effective pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: ≤150mA
16.Current consumption: 90mA Max
17.Storage temperature:-40°C to +60°C, RH95% Max
18.Minimum illumination:0.3Lux/F1.2
19.Operating Temperature:-30°C to +50°C, RH95%
Package Content:

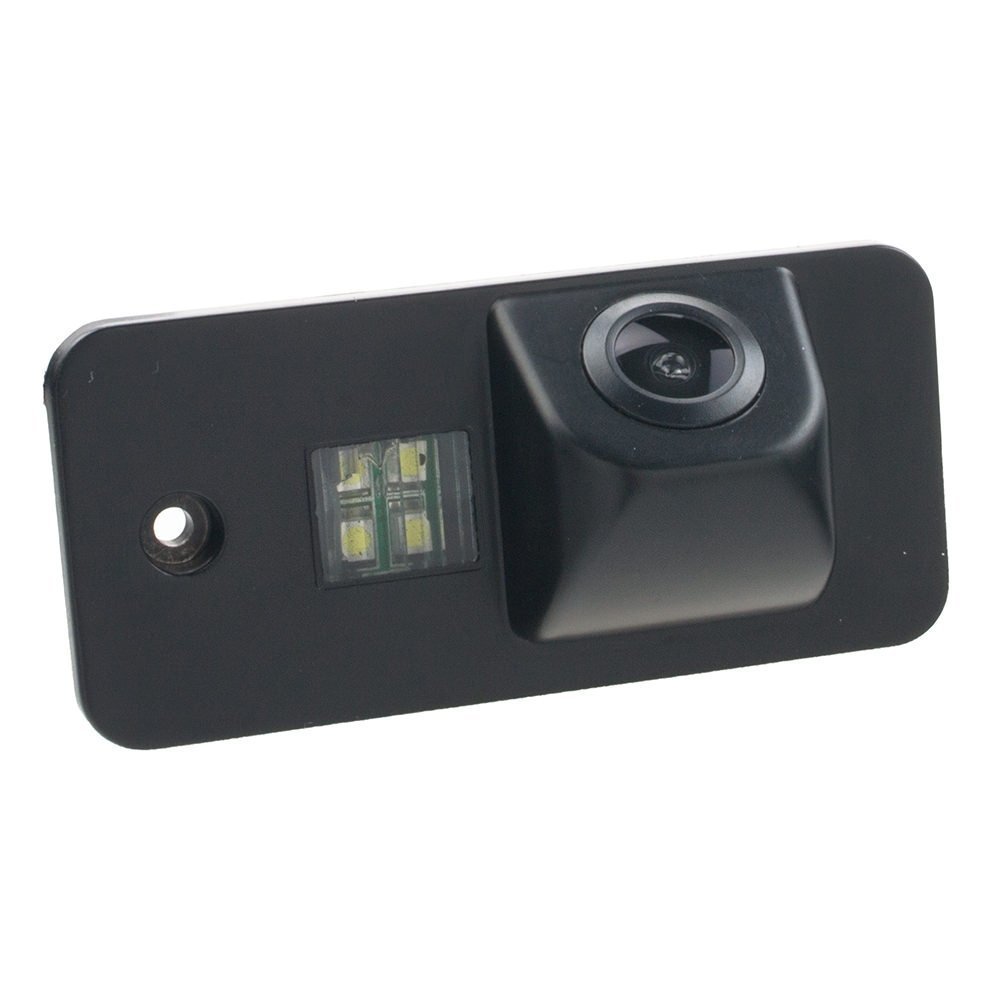

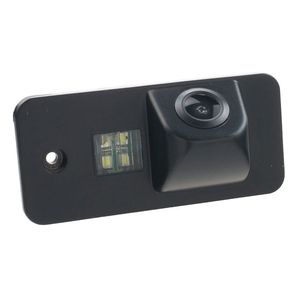

1 x CCD CAR Camera
1 x 6M video cable
1 x 1M power cable
1 x User Manual
