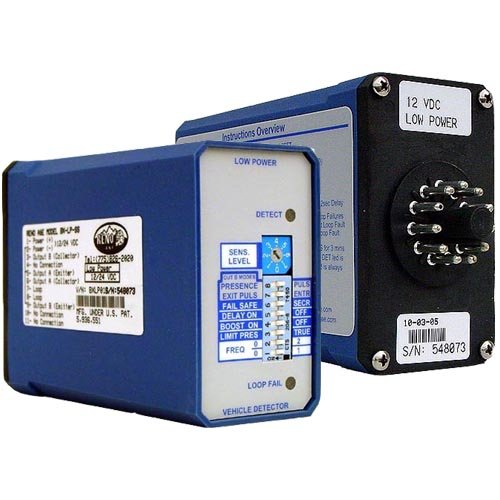

RENO BX LP Loop Detector - 24V Low Power Automatic Exit Gate Loop Detector

yo illustrates the installation of a cut-in vehicle loop this type of loop can be installed in concrete or asphalt you can use a standard circular saw with an eighth inch wide diamond blade start by finding the center of the driveway mark the end of the loop off of the center mark it would be three feet from the center if your loop is six feet long for driveways 12 to 14 feet wide use a six foot by 4 foot loop driveways that are 16 to 18 feet wide use an 8 foot by 4 foot loop measure the width of the loop this typically 4 feet use a square to mark the sides commonly safety loops are kept 3 feet away from the gate most loops are 6 to 10 feet across and 4 feet wide if the loop with exceeds 4 feet it should be kept 4 feet away from the gate set the diamond blade depth to 1 inch make your cuts you can use the saw motors fan to blow off the dust to see the line better start your corner cuts
