Ricks Motorsport Electric Rectifier/Regulator Wiring Harness Connector Kit 11-108

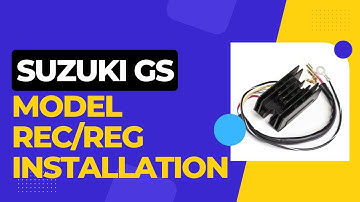

in this video we're showing you installation connections for part number 10 - 202 there's often some confusion on these systems because of the way Suzuki wired a lot of these early GS model bikes in which one of the AC output wires from the stator specifically the white wire with the green tracer ran up through the handlebars and returned to the rec rec as white with a red tracer these are the connections for a 10 - 2 O to the yellow white with blue and white with red wires or the AC inputs red is DC positive and black is DC negative if using the heavy-duty 10 - 2 - 1 H all three AC inputs will be yellow and if using a lithium-ion friendly 14 - 2 o 2h the 3 AC inputs will be yellow and the ground / DC negative will be green so if you're connecting in place of the OEM rectifier you can make the captions as shown here with the LED yellow white red white red and white blue to white blue if
