Description
100% brand new and high quality
Material: Electricity component
Color: See pictures
Features:
Over charge voltage test: VCU 4.25V ±0.05V (4.20-4.35V // each 0.05V per step)
Over charge voltage resume: VCD 4.10-4.00V
Over discharge voltage test: VDD2.50V ±0.1V (2.5-3.0V // each 0.05V per step)
Over discharge voltage resume: VDU 2.80V ±0.V1
Operating current: ≤300UA
Short circuit protection: 40A±3A
Short circuit protection duration: 500MS
Temperature protection: 55 / 65 / 75 degree
Typical output current: 30A
Max. output current: 45A
Balance voltage for single cell:4.19V ±0.02V
Balance current for single cell:≤ 55MA
Charging current:≤10A
Dim. 53 x 63mm (L x W)
Application:
You can DIY battery charger for various equipment ie. Drill & Solar Battery
Size: See the picture
No retail package
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!!

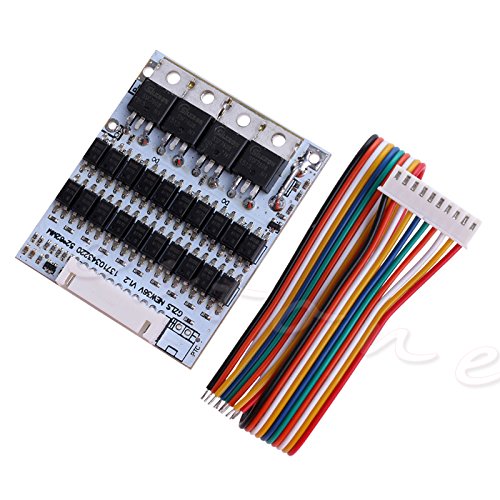

RingBuu 10S 36V Li-ion Lithium Cell 40A 18650 Battery Protection BMS PCB Board Balance
Current Price
$9.75
Average
$9.65
Min Price
$9.55
Max Price
$9.75
Price dynamics
1%
Description
100% brand new and high quality
Material: Electricity component
Color: See pictures
Features:
Over charge voltage test: VCU 4.25V ±0.05V (4.20-4.35V // each 0.05V per step)
Over charge voltage resume: VCD 4.10-4.00V
Over discharge voltage test: VDD2.50V ±0.1V (2.5-3.0V // each 0.05V per step)
Over discharge voltage resume: VDU 2.80V ±0.V1
Operating current: ≤300UA
Short circuit protection: 40A±3A
Short circuit protection duration: 500MS
Temperature protection: 55 / 65 / 75 degree
Typical output current: 30A
Max. output current: 45A
Balance voltage for single cell:4.19V ±0.02V
Balance current for single cell:≤ 55MA
Charging current:≤10A
Dim. 53 x 63mm (L x W)
Application:
You can DIY battery charger for various equipment ie. Drill & Solar Battery
Size: See the picture
No retail package
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!!
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hi friends I think most of you are lithium ion battery users they are now everywhere in smartphones players laptops and even in electric cars lithium-ion batteries are now the most efficient type of batteries they are compact have high energy intensity lack of parasitic memory effect but have one significant drawback the fact is that they are operation and the process of charging should be carefully monitored if the battery discharges below a certain limit there is a high probability that it will fail the same is in the case of overcharging the voltage of a fully charged lithium ion battery is 4.2 volts recharging can cause blistering and even explosion of the battery same will happen in the case of overload and short circuits heating the formation of gases and eventually explosion of the battery some latina and batteries are equipped with a safety valve that will not allow the battery
