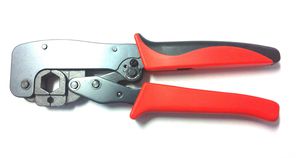

rmsdeal77 Coax RF Connector Ratchet Crimping Tool for LMR-600 Cable

Hi. This is Mark, from Show Me Cables, and today I'm going to show you how to terminate an in-male crimp connector for LMR600. For today's project I'm going to need LMR600 cable, a three-piece end male crimp connector, a soldering iron with solder, a crimping tool, and a specialty LMR stripper. The first step is to expose the cinder conductor. Insert the LMR600 into the specialty strip tool. Rotate the cable inside of the tool. This exposes the center conductor. Then take the cut LMR600 and insert it in the other end of the strip tool. This will cut the jacket. Next, fold the braided shield over the jacket. Then, taking your soldering iron and solder, solder the cinder pan onto the cinder conductor. Next slide the ferrule over the braid on to of the jacket. Then insert the end connector housing onto the cable. Finally, slide up the ferrule and make sure that the braided shield makes con
