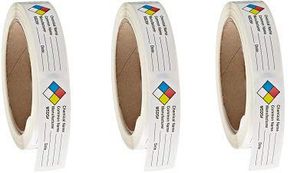

Roll Products 163-0004 Litho Removable Adhesive HMIG Label with 4 Color Imprint, Chemical Name (with Blank), 2-1/2" Length x 3/4" Width, for Identifying and Marking, White (Roll of 250) (3-(Pack))

how to install a roll of black mark or cube our labels in the Chiara this video will show you how to load your key ro with the roll of labels that have a black line for reflective sensing print it on the liner backing this is commonly called a cue bar or reflective mark your key ro uses this black line during its calibration process so it can sense where to start printing on each label we'll begin by opening the door on your key ro printer now lift up the label roll holder next lift up both green media guides to open up the label path squeeze the blue lever on the gray flange so that you can slide the gray flange off the mandrel separating it from the black flange slide your label roll onto the black piece first make sure that the labels are facing forward on the roll with a loose end sitting on top of the roll then fit the gray piece snuggly over the label roll place the roll holder ba
