Description:

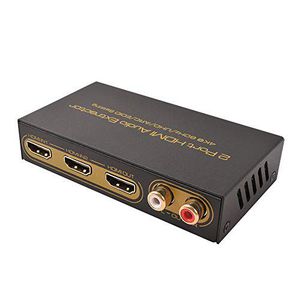

Item type:Audio splitter
The digital audio output can support up to 192KHz audio sampling rate (LPCM2.0 format), and also supports LPCM 2.0, DOLBY-AC3, DTS and other audio format output.
LED status indication, making the working status of the product clear at a glance
When input and output at 4K@60Hz resolution, the AWG24 HDMI standard cable is used, the input transmission distance is up to 5 meters, and the output transmission distance is up to 5 meters. When inputting and outputting at 4K@30Hz and below resolution, the AWG26 HDMI standard cable is used, the input transmission distance is up to 8 meters, and the output transmission distance is up to 8 meters.
easy installation.
External DC 5V/1A power adapter.
HDMI resolution: 4Kx2K@60Hz /4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i
HDMI input/output support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output: fiber and left and right channels
Digital audio output format: LPCM2.0/Dolby AC3/DTS
Digital audio output sampling rate: 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz
Maximum transmission bandwidth: 600MHz
Maximum transmission rate: 18Gbps
HDMI input and output DDC signal: 5Vp-p (TTL)
Input cable length: ≤8m (1080P)/5m (4K) AWG24 HDMI standard cable
Output cable length: ≤8m (1080P)/5m (4K) AWG24 HDMI standard cable
Maximum operating current: 500mA
Power adapter specifications: AC input (50 / 60HZ) 100V-240V
DC output: 5V/1A
Package Include:
1 x product, 1 x Manual, 1 x box packaging
Note:
The colors deviation might differ due to different monitor settings.
