Description
Features
--An RJ45 ports and a single-fiber SC optical port,to achieve optical signal conversion between 10/100base TX twisted pair,
(Ethernet )and 100base FX (fiber optic);
--Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission,
mode to improve the quantity doubled ;
--Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards;
--Has 10M/100M adaptive capacity;
--Ethernet interface can adaptively direct line / crossover cable connection; --Support full / half duplex mode;
--Support IEEE802.3X duplex flow control and half-duplex backpressure flow control;
--Supports broadcast storm prevention function ;
--1916 Byte support large data frame ( optional ) ;
--Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction;
--UTP up to 100 meters; longest 100 km single-mode fiber;
--Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working
--There are external, internal power supply of two types: AC100-260V /DC5V switching power supply;
--Ambient temperature: 0-70 degree ;
--Humidity: 5% to 90%
--Dimensions: 95*71*25mm
Fiber Optic Parameters:
Model: HTB-1100S
Fiber optic type: Single mode
Connector type: SC
Transmit Wave length: 1310/1550nm
Transmission distance: 25 Km
Min TX PWR: -9.0 dBm
Max TX PWR: -3 dBm
Sensitivity: -31.0 dBm
Link Budget: 22.0 dBm
Package Include:
1x HTB-1100Sa (to receive)
1x HTB-1100Sb (to transmit)
2x Power DC 5V
1x User manual
--An RJ45 ports and a single-fiber SC optical port,to achieve optical signal conversion between 10/100base TX twisted pair,
(Ethernet )and 100base FX (fiber optic);
--Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission,
mode to improve the quantity doubled ;
--Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards;
--Has 10M/100M adaptive capacity;
--Ethernet interface can adaptively direct line / crossover cable connection; --Support full / half duplex mode;
--Support IEEE802.3X duplex flow control and half-duplex backpressure flow control;
--Supports broadcast storm prevention function ;
--1916 Byte support large data frame ( optional ) ;
--Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction;
--UTP up to 100 meters; longest 100 km single-mode fiber;
--Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working
--There are external, internal power supply of two types: AC100-260V /DC5V switching power supply;
--Ambient temperature: 0-70 degree ;
--Humidity: 5% to 90%
--Dimensions: 95*71*25mm
Fiber Optic Parameters:
Model: HTB-1100S
Fiber optic type: Single mode
Connector type: SC
Transmit Wave length: 1310/1550nm
Transmission distance: 25 Km
Min TX PWR: -9.0 dBm
Max TX PWR: -3 dBm
Sensitivity: -31.0 dBm
Link Budget: 22.0 dBm
Package Include:
1x HTB-1100Sa (to receive)
1x HTB-1100Sb (to transmit)
2x Power DC 5V
1x User manual

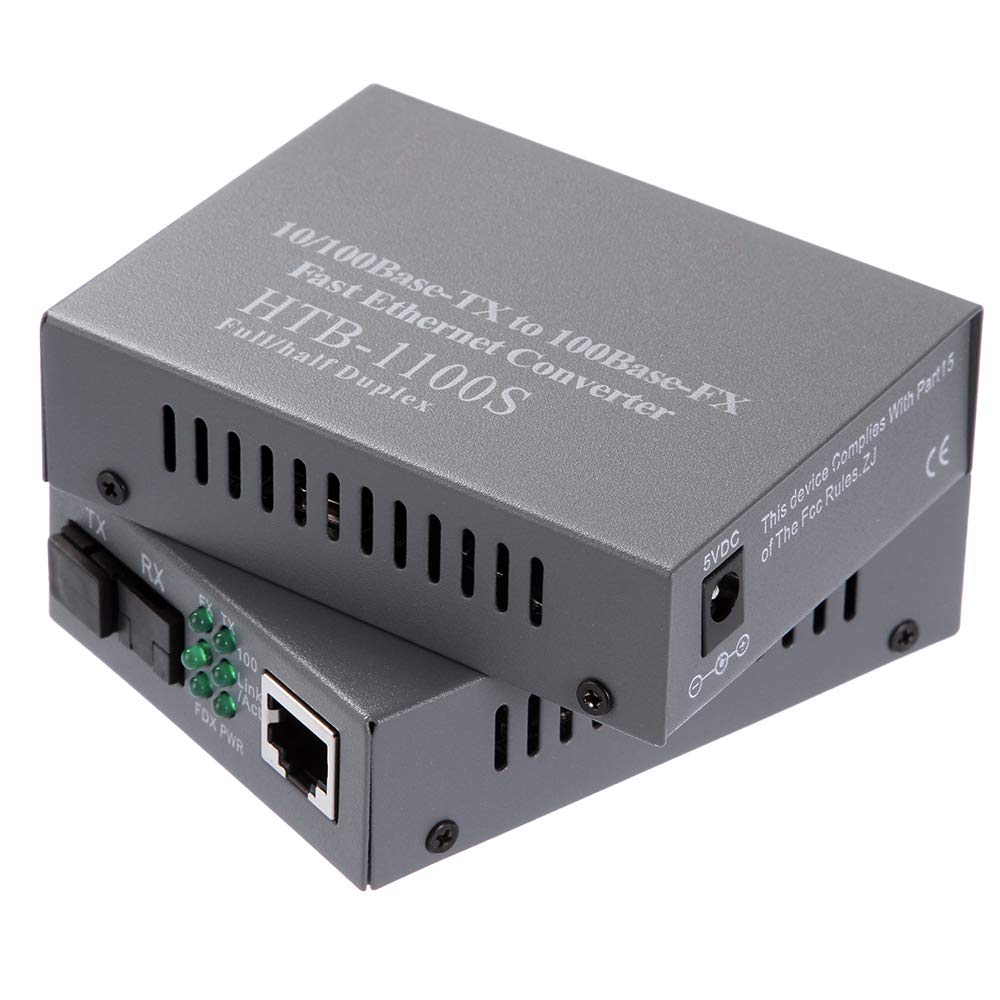

Runshuangyu 10/100Mbps RJ-45 Ethernet to Gigabit Fiber Optical Media Converter Adapter with Built-in Lightning Protection 25KM (15.53miles) 1 Pair SC
