Description
Installation: 1. Begin separation of the messenger wire from the cable using the end-edge of the SC02MFASS Drop Clamp. Note: Never use a knife or other sharp tool to separate messenger & cable. 2. Fit the cable and messenger wire into the SCO2MFA-SS Drop Clamp as shown, so that the Clamp Bail is between the two. 3. Grasp the separated end of the messenger and cable with one hand and grip the Clamp Body, as shown, with your other hand. Then, pull the SC02MFA-SS back, in a straight line, separating the length of messenger wire needed to make the wrap; about 15 to 18-inches. 4. Pull the messenger wire around the center of the bearing surface as shown, toward the rear or drop-side of the Clamp. Note: If at the house end of the drop, this will be done while tensioning or "sagging" the drop. 5. Serve the messenger wire through the "L" Slots and begin the wrap about the SC02MFA-SS body, as shown. 6. Continue the messenger wire wrap for two full turns. 7. Serve the messenger wire through the "L" Slot, as shown, to the drop-side of the SC02MFA-SS and cut the excess wire away, or ground it to the strand. Note: For drop cable with larger messenger wire, one wrap is sufficient. Serve the end of the wire around the end of the SC02MFA-SS and bring it back up the "L" Slots, then cut away the excess, or ground it to the strand

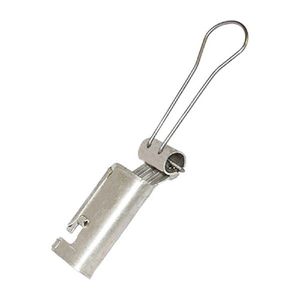

Sachs Messenger CATV Coaxial Drop Clamp
Current Price
$5.59
Average
$5.12
Min Price
$4.58
Max Price
$5.59
Price dynamics
8%
Description
Installation: 1. Begin separation of the messenger wire from the cable using the end-edge of the SC02MFASS Drop Clamp. Note: Never use a knife or other sharp tool to separate messenger & cable. 2. Fit the cable and messenger wire into the SCO2MFA-SS Drop Clamp as shown, so that the Clamp Bail is between the two. 3. Grasp the separated end of the messenger and cable with one hand and grip the Clamp Body, as shown, with your other hand. Then, pull the SC02MFA-SS back, in a straight line, separating the length of messenger wire needed to make the wrap; about 15 to 18-inches. 4. Pull the messenger wire around the center of the bearing surface as shown, toward the rear or drop-side of the Clamp. Note: If at the house end of the drop, this will be done while tensioning or "sagging" the drop. 5. Serve the messenger wire through the "L" Slots and begin the wrap about the SC02MFA-SS body, as shown. 6. Continue the messenger wire wrap for two full turns. 7. Serve the messenger wire through the "L" Slot, as shown, to the drop-side of the SC02MFA-SS and cut the excess wire away, or ground it to the strand. Note: For drop cable with larger messenger wire, one wrap is sufficient. Serve the end of the wire around the end of the SC02MFA-SS and bring it back up the "L" Slots, then cut away the excess, or ground it to the strand
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
[Music] mclean's in the industry offers our messenger drop clamp which has many benefits over alternate products on the market it has a much wider body and can be used with rg 59 rg6 rg6 dual as well as rg11 messenger cables you will also see that both ends of the clamp are beveled out that's to so that you do not have any type of chafing or cutting of the cable as it floats within the clamp you'll see an indentation in the center of the bail attachment that's to keep the messenger centered so it does not slip between the bail and the body of the clamp and pinch where you can have a break you'll also notice that the tabs are rolled down flat and that's for safety and to prevent hand injury during installation you also have a much wider bale for use on multi-span clamps for easier installation and easier removal when installing the messenger drop clamp you will notice that there's a smal
