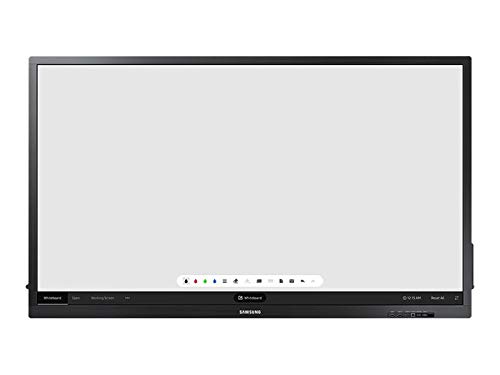

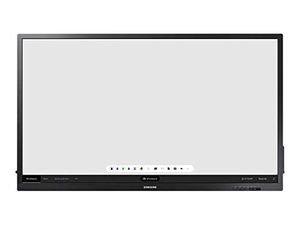

Samsung 4K UHD 2160p LED-Backlit LCD Flat Panel Display with Touchscreen 75" Black (QB75H-TR/US)

In this video we will show how to replace the LED strips in this Samsung TV. It is recommended to take pictures during the repair process to use as a reference point. Be sure your TV is unplugged. We have already removed the screws from the back cover. Remove the inner back cover. Before removing the outer cover completely, lift it a little bit and disconnect the cable on the main board, and the cable on the wifi module. Disconnect the ribbon cables from the scan drive boards. Remove the screws on the bottom of the TV that hold the bezel in place. Disconnect and remove the speakers so that they do not fall when the TV is flipped. Flip the TV over and remove the bezel. Release the scan drive boards from the tabs. Using tape, carefully flip up the scan drive boards and tape them to the panel. Using suction cups, remove the TV panel. Release and remove the four pieces of the panel frame.
