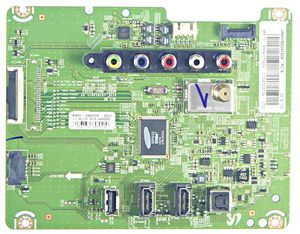

Samsung BN94-07592A Assy Pcb Main

hello this is Bobby at Koppel to be repaired today with a video dedicated to mainboards for the Samsung f-series this is un60f8000 apply to all boards that are based on the same well g41 number I don't see when it's printed on the board right now but who is another similar board this is you 155 F 6400 there is another one which is slightly different it's from a smaller TV this one is UN 40 X 6300 the difference between those two is mostly in the size of the power connector but otherwise the outputs are the same and failures are the same the repair procedure is the same so this particular one was sent here for it there and what it does is it just makes the TV click now there are different types of failures I'm turning it on and we're testing on a different and we're testing on 60 f7 100 that's the one that that the chase is that we're using while this is 60 F 1750 there are some minor di
