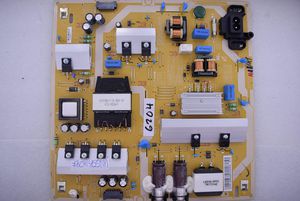

Samsung UN55KU6290F L55S6R_MSM PSLF201S09A Power Supply Board 6204

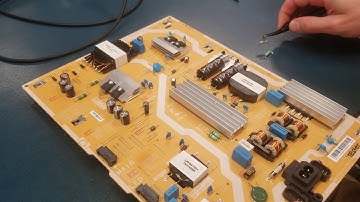

[Music] in this video we will show how to replace the resistors on this samsung power supply / LED board the two resistors that we will be replacing are located at our 9 1 1 1 and our 9 2 1 1 it is recommended to replace these resistors after you have replaced the edgelet LED bars begin by locating the resistors on the board then flip the board over and begin to scrape away the coating that may be over the resistors desolder the resistors and remove them from the board match the size of the replacement resistors with the originals then push the resistors through the board and solder them once you have soldered the resistors to the board you should trim the legs
