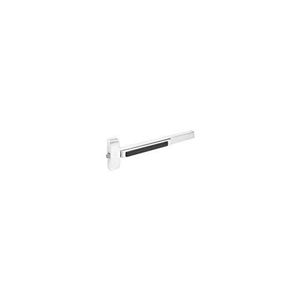

Sargent Manufacturing Company EXIT, 8888, F, 32D - A3W_0T-888800002

this is the installation procedure for the sergeant en 220 rim type exit door to complete this procedure you will need a number two and number three Phillips head screwdriver and a pin hex wrench verify the hand and bevel of the door prepare the door according to the supplied door marker the following steps will show a typical application of the i-n 220 system as shown in this diagram use the mckinney hinge to thread wiring from the door to your pou router using the ring terminal carefully route the assembly through the door channel to the lock crimp the connector to the rj45 cable connect the molix M connectors at the end of the cat 5e cable to the molix F connectors on the mckinney hinge note connectors go on only one way do not force and do not offset the connectors be sure they are completely seated flush connect the POF rain harness assembly to the p OE data hinge connect the groun
