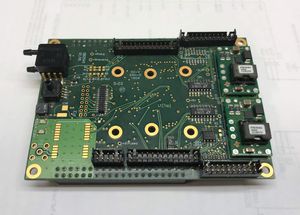

Sensor / Interface Board for Terasic DE0-Nano-SoC 1. General Description The FCS25 advanced UAV flight control system consists of an SB25 Sensor / Interface board and a Terasic DE0-Nano-SoC processor board. The system is designed to create an affordable, flexible and powerful UAV Flight Control solution. The SB25 board is designed to offer a wide range of sensor and interface options (See Figure 1). Figure 1: The SB25 UAV Sensor / Interface board attaches to a Terasic DE0-Nano-SoC processor board and offer a wide range of sensor and interface options. System Highlights: - Terasic DE0-Nano-SoC processor board o Altera Cyclone V SE with Dual-core ARM Cortex-A9 processor o 1GB DDR3 SDRAM (32-bit data bus) o 1 Gigabit Ethernet PHY (RJ45) o MicroSD card socket o Linux Operating System - True Flight Technology FCS25 Sensor/Interface Board: o Interface to External or Internal IMU (e.g. ADIS16365) (SPI bus) o Sigma-Delta ADC for altitude, airspeed, supply voltages, general purpose analog inputs o Internal (uBlox NEO-6/8) or External GPS receiver (UART) o 8 x PWM inputs (5 Volt compatible inputs) o 13 General Purpose Input/Output pins (5 Volt compatible inputs) o 16 x Configurable PWM outputs (5 Volt Buffer/Driver with Software Enable) o 4 Open Collector Outputs (Each output can sink up to 150 mA) o 6 x RS-562 serial ports (May be configured as TTL ports) o 1 x RS-485 serial port o 1 x CAN Bus o 64K EEPROM for sensor calibration data o Voice Chip with programmable 8MB Flash memory and speaker output o Buzzer o LEDs: "3.3V" and "CPU Active" - Board Support Package: o Stability Augmentation System (FPGA) o Channel Mixer (FPGA) o Linux Operating System (ARM processor)

SB25A1 Sensor-Interface Board

Get price

Current Price

$595
