Description

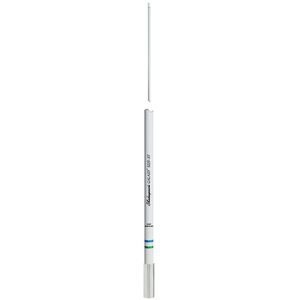

Shakespeare Galaxy Style 5225-XT.8 VHF 6dB Gain.Collinear-phased 5/8 wave elements.EXTRA TOUGH .Shakespeares best 8, 6dB Gain antenna.Its Galaxy design maximizes range and quality in a great looking antenna.The 5225-XT is Shakespeares classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty.Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.Brass and copper elements for maximum range and efficiency.Stainless steel ferrule with standard 1""-14 thread.20 RG-8/X low-loss cable plus a PL-259 connector.Suggested mount: Shakespeare Style 4187 Ratchet Mount.One section.Shakespeare Limited Warranty: 5 years.Technical Specifications: Frequency: VHF Marine Band.Bandwidth: 3 MHz within 2.0: 1 VSWR.SWR: nominally 1.5: 1 at 156.8 MHz.Impedance: 50 ohms.Max Input (Watts): 100 watts.DC Ground: YES.Height (feet): 8.Polarization: Vertical.
Antenna Band VHF. Cable Length(Feet) 20. Cable Type RG-8X.
Color White. Construction Fiberglass. DB Gain(dB) 6 dB.
Ferrule Type Stainless Steel. Length (Inches) 8. Product Dimensions 96H x 2W x 2D.
Box Dimensions 3H x 3W x 96L. Weight 2.2lbs. Warranty 5 Years. Polarization Vertical.
Frequency VHF Marine Band. Bandwidth 3 MHz within 2.01 VSWR. SWR nominally 1.51 at 156.8 MHz.
Average Shipping Time: 6
Average Shipping Time: 6
Shakespeare Shakespeare 5225-XT 8' VHF Antenna electronic consumers
Current Price
$170.66
Average
$149.77
Min Price
$123.12
Max Price
$218.1
Price dynamics
12%
Description
Shakespeare Galaxy Style 5225-XT.8 VHF 6dB Gain.Collinear-phased 5/8 wave elements.EXTRA TOUGH .Shakespeares best 8, 6dB Gain antenna.Its Galaxy design maximizes range and quality in a great looking antenna.The 5225-XT is Shakespeares classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty.Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.Brass and copper elements for maximum range and efficiency.Stainless steel ferrule with standard 1""-14 thread.20 RG-8/X low-loss cable plus a PL-259 connector.Suggested mount: Shakespeare Style 4187 Ratchet Mount.One section.Shakespeare Limited Warranty: 5 years.Technical Specifications: Frequency: VHF Marine Band.Bandwidth: 3 MHz within 2.0: 1 VSWR.SWR: nominally 1.5: 1 at 156.8 MHz.Impedance: 50 ohms.Max Input (Watts): 100 watts.DC Ground: YES.Height (feet): 8.Polarization: Vertical.
Antenna Band VHF. Cable Length(Feet) 20. Cable Type RG-8X.
Color White. Construction Fiberglass. DB Gain(dB) 6 dB.
Ferrule Type Stainless Steel. Length (Inches) 8. Product Dimensions 96H x 2W x 2D.
Box Dimensions 3H x 3W x 96L. Weight 2.2lbs. Warranty 5 Years. Polarization Vertical.
Frequency VHF Marine Band. Bandwidth 3 MHz within 2.01 VSWR. SWR nominally 1.51 at 156.8 MHz.
Average Shipping Time: 6
Average Shipping Time: 6
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hi my name is Chris Kato and I'm with Shakespeare electronic products group we're going to be discussing a day the things to look for in antennas they're going to be three specific aspects that you're going to look for you're going to look for finish element and ferrule we have a spiral type finish to begin with the spiral type finish is going to be found on a lot of antennas it does okay in the UV but will break down over a period of time what you can however do is step up into a better category of finish which is a smooth type finish like these to our much smoother finish looks nicer doesn't have the capability of breaking down over a shorter period time but a longer period of time or if you want an even better finish then you can go to a high gloss highly smooth finish which will last indefinitely in the UV area the next thing we want to talk about are into the elements you have coax
