Description
Making strong and attractive half-blind dovetail joints has never been so easy! Simply set up this 11" Dovetail Machine to match the stock width and thickness, make a few adjustments to get a glove-like fit, and then crank out dozens of perfect dovetail joints every hour. Accepts workpieces as large as 28" long x 11-1/4" wide and as small as 7-7/8" long x 2-3/8" wide. Includes templates for four different dovetail sizes. Specifications: Motor: 1 HP, 110V/220V, prewired 110V, single-phase. Table size: 19-1/2" x 7". Floor to table height: 38-5/16". Overall size: 30-1/2"W x 57"H x 22-1/2"D. Number of spindles: 1. Spindle speed: 18,500 RPM. Dovetail bit: 10° angle x 5/8" left-hand. Dovetail bit shank: 1/2" (12mm). Dovetail templates: 1", 1-1/2", 2", 2-1/2". Max. dovetail height: 3/4". Min. dovetail height: 3/16". Max. stock thickness: 1-3/4". Min. stock thickness: 13/32". Max. stock size: 28"L x 11-1/4"W. Min. stock size: 7-7/8"L x 2-3/8"W. Precision-milled cast-iron table frame. Cast aluminum carriage. Steel stand. Hardened-and-ground chrome steel slide ways. Ball bearing linear guides. Four-sided dovetail template bar. Micro-adjustable spindle head. Workpiece stops. Quick cam clamp. Spring-loaded carriage for smooth operation. ON/OFF push button switch with oversized stop paddle. 4" dust port. 2 camlock bar clamps. Approximate shipping weight: 366 lbs.

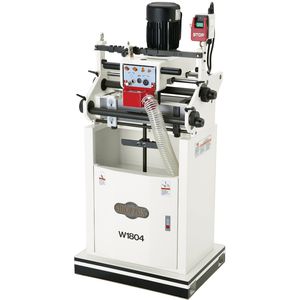

SHOP FOX W1804 11-Inch Dovetail Machine
Current Price
$2 988.99
Average
$2 433.6
Min Price
$1 508.78
Max Price
$3 236
Price dynamics
19%
Description
Making strong and attractive half-blind dovetail joints has never been so easy! Simply set up this 11" Dovetail Machine to match the stock width and thickness, make a few adjustments to get a glove-like fit, and then crank out dozens of perfect dovetail joints every hour. Accepts workpieces as large as 28" long x 11-1/4" wide and as small as 7-7/8" long x 2-3/8" wide. Includes templates for four different dovetail sizes. Specifications: Motor: 1 HP, 110V/220V, prewired 110V, single-phase. Table size: 19-1/2" x 7". Floor to table height: 38-5/16". Overall size: 30-1/2"W x 57"H x 22-1/2"D. Number of spindles: 1. Spindle speed: 18,500 RPM. Dovetail bit: 10° angle x 5/8" left-hand. Dovetail bit shank: 1/2" (12mm). Dovetail templates: 1", 1-1/2", 2", 2-1/2". Max. dovetail height: 3/4". Min. dovetail height: 3/16". Max. stock thickness: 1-3/4". Min. stock thickness: 13/32". Max. stock size: 28"L x 11-1/4"W. Min. stock size: 7-7/8"L x 2-3/8"W. Precision-milled cast-iron table frame. Cast aluminum carriage. Steel stand. Hardened-and-ground chrome steel slide ways. Ball bearing linear guides. Four-sided dovetail template bar. Micro-adjustable spindle head. Workpiece stops. Quick cam clamp. Spring-loaded carriage for smooth operation. ON/OFF push button switch with oversized stop paddle. 4" dust port. 2 camlock bar clamps. Approximate shipping weight: 366 lbs.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
