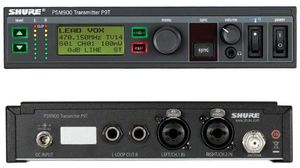

Shure P9T PSM900 Transmitter K1

the sure PSM 900 wireless personal monitor system offers industry-leading sound features and RF performance and it's remarkably easy to setup here's how it works in this example two receivers will be tuned to the same transmitter first we need to setup the transmitter connect the supplied power adapter to the DC power input jack on the rear panel of the p90 rack mount transmitter connect the power adapters AC plug to a power outlet attach the transmitter antenna to the antenna out connector on the back of the transmitter connect the appropriate outputs from your mixer to the left and right audio input jacks on the rear of the transmitter the transmitter has separate switches for power and RF signal output make sure the RF switch is off and then turn the power on using the menu on the p90 transmitter select the appropriate input sensitivity to match the output level from your mixer adjus
