SIEMENS | 6ED1052-1MD00-0BA6 | Logo! 12/24RC Logic Module (Renewed)

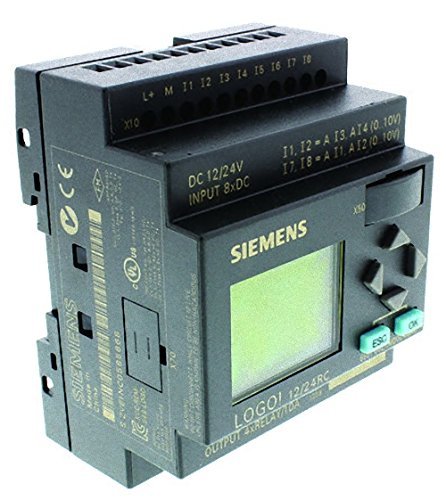

For the needs of this tutorial we are going to use a Logo 12/24 rc from Siemens it has a Display Panel user interface with arrow keys going forward and backward up and down plus two additional he ESC and OK our model has 43 layout outputs with two connectors the potential of the relay contacts is isolated from the power supply and the inputs on the other side we have 8 digital inputs marked from I1 to I8 In case of this particular PLC there is also a possibility of using I want i to I7 and I8 as analogue inputs next to the display screen there is a socket through which you can connect the logo to a PC to do so you will also need a PC cable that can be connected to USB port and a compatible software for your PC turning to the other side we can see a socket that allows us to connect an external Touch Display panel and here we have a socket that allows us to hook up external expansion modu
