Description

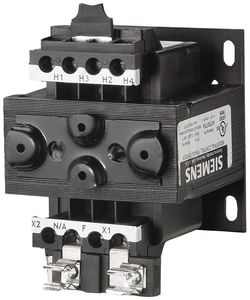

This Siemens MT0050E industrial power transformer has a 50 VA power rating, a voltage letter designation of F, and reduces 208/277 V (primary voltage) to 120 V (secondary voltage). A silicon steel-laminated core and copper magnet wire increase transformer efficiency, which decreases the destabilizing effect of inrush current on secondary voltage. Epoxy-encapsulated transformer coils resist moisture, dust, and industrial contaminants, and built-in terminals and barriers resist breakage. Steel mounting brackets provide stable mounting and slotted mounting feet make installation easier. The thermal insulation class for this transformer is 105 degrees C with a 55 degree C (131 degrees F) temperature rise. This power transformer is Underwriters Laboratories (UL) listed and CSA International certified, and is suitable for use in transforming electrical power for machine tools and industrial control circuits.

Specifications

Primary voltage	208/277 V
Secondary voltage	120 V
Voltage letter	F
Power rating	50 VA
Frequency rating	50/60 Hz
Rating marks	UL, CSA
Built-in fuse clips	Secondary side
Thermal class	105 degrees C (221 degrees F)

Power transformers change voltage from a supplied voltage to a required voltage. They also isolate control circuits from power and lighting circuits, which reduces electronic interference. Transformers accommodate specific primary voltages and currents, and supply specific secondary voltages and currents. Power transformers are used in a wide range of applications, such as home electronics power supplies, machine tools, and the distribution of electricity.

Siemens manuf

Siemens MT0050F Industrial Power Transformer, Domestic, 208/277 Primary Volts 50/60Hz, 120 Secondary Volts, 50VA Rating

Price is below average

Current Price

$56.34

Average

$66.58

Min Price

$54.39

Max Price

$91.31

Price dynamics

15%

Description

This Siemens MT0050E industrial power transformer has a 50 VA power rating, a voltage letter designation of F, and reduces 208/277 V (primary voltage) to 120 V (secondary voltage). A silicon steel-laminated core and copper magnet wire increase transformer efficiency, which decreases the destabilizing effect of inrush current on secondary voltage. Epoxy-encapsulated transformer coils resist moisture, dust, and industrial contaminants, and built-in terminals and barriers resist breakage. Steel mounting brackets provide stable mounting and slotted mounting feet make installation easier. The thermal insulation class for this transformer is 105 degrees C with a 55 degree C (131 degrees F) temperature rise. This power transformer is Underwriters Laboratories (UL) listed and CSA International certified, and is suitable for use in transforming electrical power for machine tools and industrial control circuits.

Specifications

Primary voltage	208/277 V
Secondary voltage	120 V
Voltage letter	F
Power rating	50 VA
Frequency rating	50/60 Hz
Rating marks	UL, CSA
Built-in fuse clips	Secondary side
Thermal class	105 degrees C (221 degrees F)

Power transformers change voltage from a supplied voltage to a required voltage. They also isolate control circuits from power and lighting circuits, which reduces electronic interference. Transformers accommodate specific primary voltages and currents, and supply specific secondary voltages and currents. Power transformers are used in a wide range of applications, such as home electronics power supplies, machine tools, and the distribution of electricity.

Siemens manuf
