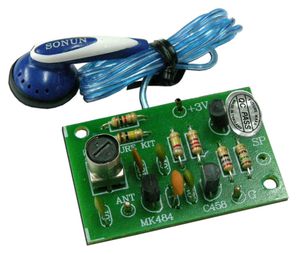

Simple AM Radio for Electronic Student [ Assembled kit ]

your AM radio kit comes in a bag it consists of a PCB components and a manual you in your circuit you have a ferrite rod antenna a speaker a potentiometer that controls the volume a tuning capacitor for selecting stations a frequency detector and an audio amplifier to drive the speaker as we did before place all your components in without soldering them once you've placed your components in make sure that the orientations are correct before you start soldering once you solder them make sure to cut the leads also be sure to check for any solder bridges so first we'll go ahead and put in all the resistors and diodes remember that the black notch on the diode is the line on the circuit schematic and that the cylindrical capacitors are the ones that are polarized they have a negative marking on the side gray and indicates that it's a negative side c6 actually has to be placed on the backsid
