Description
Attention:
We have made a little change on this product, there is no remote or button to remove the guide lines or flip the image now.
Technical Title£º
Image Sensors: high resolution
Waterproof grade£ºIP 67
Horizontal resolution£º600TVL
Effective Pixels£º811*508
TV System£º PAL
Lens Angle (Deg.)£º170¡ã diagonal
Minimum illumination£º0.01 Lux
Electronic Shutter£º1/60(NTSC)/1/50(PAL)-1/10,000S
S/N Ratio£º¡Ý48dB
Horizontal Sync.Frequency (KHZ)£º15.625KHz/15.734KHz
Vertical Sync.Frequency (HZ)£º60Hz/50Hz
Video output£º1.0vp-p,750hm
White Balance£ºAuto
AGC £ºAuto
BLC £ºAuto
Power Supply£ºDC12V¡À1V
Power£º0.7W
Current Consumption (mA)£º70~80mA
Operating Temperature (Deg.C)£º-30~+70(RH95%MAX.)
Storage Temperature (Deg.C)£º-40~+80(RH95%MAX.)
description:
1. The switching power supply circuit design, low power consumption and very stable performance.
2. The highest grade industrial grade waterproof IP67
3.170 degree super wide-angle, the car exhaustive list of things
4. Each of our products through vibration testing, aging, waterproof test, high and low temperature test UV test, air tightness test and a series of tests before leaving the factory car regulatory standards to ensure product quality
Package Includes:
1*Car rear view camera
1*1.2m Power wire(4ft)
1*6.5m Video wire(21ft)
1*0.5m Conversion wire(2ft)
1*user manual
Package Size: 14.5 * 10 * 6cm
GW: 300G
We have made a little change on this product, there is no remote or button to remove the guide lines or flip the image now.
Technical Title£º
Image Sensors: high resolution
Waterproof grade£ºIP 67
Horizontal resolution£º600TVL
Effective Pixels£º811*508
TV System£º PAL
Lens Angle (Deg.)£º170¡ã diagonal
Minimum illumination£º0.01 Lux
Electronic Shutter£º1/60(NTSC)/1/50(PAL)-1/10,000S
S/N Ratio£º¡Ý48dB
Horizontal Sync.Frequency (KHZ)£º15.625KHz/15.734KHz
Vertical Sync.Frequency (HZ)£º60Hz/50Hz
Video output£º1.0vp-p,750hm
White Balance£ºAuto
AGC £ºAuto
BLC £ºAuto
Power Supply£ºDC12V¡À1V
Power£º0.7W
Current Consumption (mA)£º70~80mA
Operating Temperature (Deg.C)£º-30~+70(RH95%MAX.)
Storage Temperature (Deg.C)£º-40~+80(RH95%MAX.)
description:
1. The switching power supply circuit design, low power consumption and very stable performance.
2. The highest grade industrial grade waterproof IP67
3.170 degree super wide-angle, the car exhaustive list of things
4. Each of our products through vibration testing, aging, waterproof test, high and low temperature test UV test, air tightness test and a series of tests before leaving the factory car regulatory standards to ensure product quality
Package Includes:
1*Car rear view camera
1*1.2m Power wire(4ft)
1*6.5m Video wire(21ft)
1*0.5m Conversion wire(2ft)
1*user manual
Package Size: 14.5 * 10 * 6cm
GW: 300G
If you are not familiar with installation, or have any problem with this purchase, please feel free to conatct us for support.

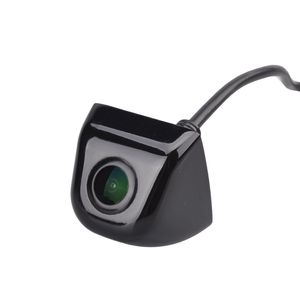

Sincere Car Rear View Camera PAL 170 Degree Night Vision Waterproof with Imaging Chip (XL-96202)
