Siren TNC Female Crimp Adapter,5pack TNC Socket Jack Female PIN Plug Connector Crimp Cable end for RG188 RG178 RG316 RG174A-U RG174 LMR100A RFC100A Type Cable (Regular TNC Female)

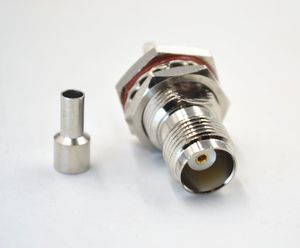

are you looking for a quick and easy DIY installation or repair for your coax cable our TNC female crimp connector for RG 174 RG 188 RG 3 16 and LM are 100 will provide a simple solution for your wiring needs the 3-piece connector consists of the connector housing the pin and the ferrule for this installation you will need a coax stripper coax cable a soldering iron a crimp tool and the TNC connector keep in mind that you will want to make sure that your coax stripper crimp tool and connector match the cable that you are installing start by inserting the ferrule over the outer jacket of the cable then using your table stripper strip back the outer jacket and dielectric the advantage of using a cable stripper is that it will strip back the jacket and dielectric at the same time pull back the braided shield and insert the pin onto the center conductor solder the pin onto the center conduc
