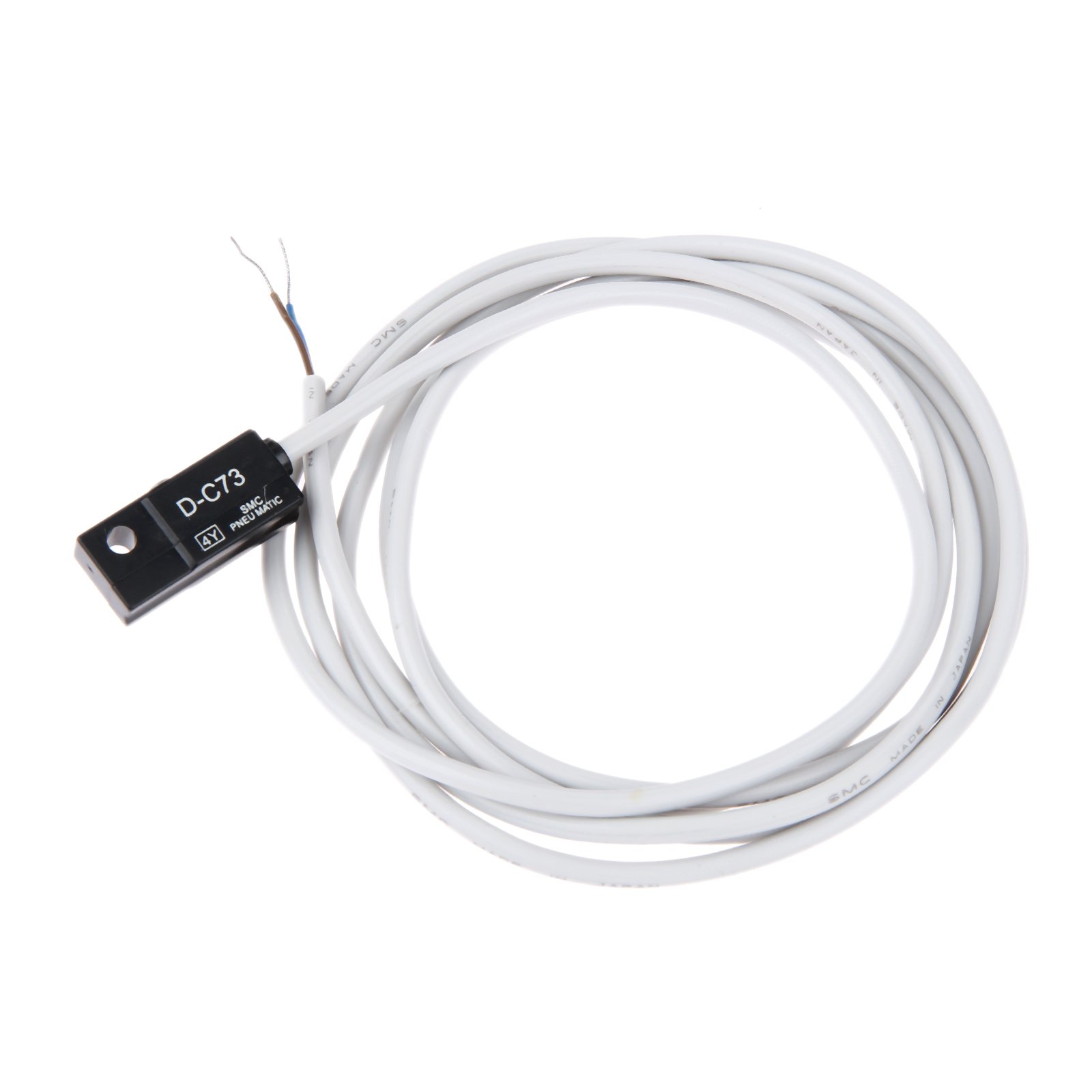

SMC Type D-C73 Pneumatic Air Cylinder Magnetic Reed Switch Proximity Sensor LED Indicator

So today we will talk about magnet sensor it is also known as pneumatic sensor the model number is DA-54 and the company which manufactures is SMC this sensor senses presence of magnet and when it get triggered its two wires get shorted the connection will like that one wire will be given to power supply and other wire will be given to load so now lets do the connections i have connected a relay as a load which is a 12 volt relay and the supply given to sensor is 16.6 VDC has been given so i am using a neodymium magnet and when i bring the magnet close to the sensing part then sensor gets triggered relay also gets triggered we used relay in the output these sensor is used in pneumatic cylinders around about sensing range is 5 mm-10 mm depending upon the power of magnet more the power higher the sensing range
