Description
The Sonora DIRECTV TAMP6-T12 6-Input Trunk Amp provides an automatic gain controlled output that is user adjustable from -15dBm to -24dBm at 2150 MHz. The Slope if field selected from either 12dB or 8dB.Features:Automatic gain simplifies the design and the installation knowing that the amplifier output is -20 dBm when the LED lights are Green.Amplifier may be coax line powered from either their RF input or RF output connectors. A dedicated power port is also provided.Power Supply is included.Passes DC & 22 kHz/DiSeQcDie Cast Aluminum Case for Indoor or Outdoor Installation.Specifications:ATSC / Ka/Ku bandwidth ......................... 54 to 2150 MHzAutomatic Gain ..................................22 dB input windowDC & 22 kHz/DiSeQc passing ...................... low insertionIndoor / Outdoor case ......................... die cast aluminumLED Signal Metering ................ Blinking Red, Green, RedSystem Impedance: 75 ohmIsolation Satellite to Satellite Ports >35dBInput Return Loss >10dB6 Inputs and 6 OutputsF Type ConnectorsSpec Sheet: Tags: tamp6_6r03, directv trunk amplifier, sonora design satellite amp, auto gain trunk amp, directv l band, directv swm amplifier

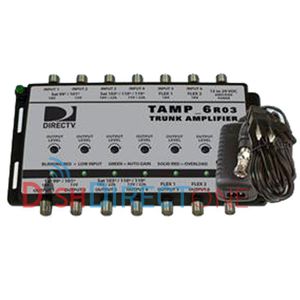

Sonora TAMP6T12 Directv D2 Advantage, [6] Coax Amp Adj. Output, With 12 Volt Psu [tamp6t12]
Current Price
$179.95
Average
$178.9
Min Price
$100
Max Price
$210.53
Price dynamics
1%
Description
The Sonora DIRECTV TAMP6-T12 6-Input Trunk Amp provides an automatic gain controlled output that is user adjustable from -15dBm to -24dBm at 2150 MHz. The Slope if field selected from either 12dB or 8dB.Features:Automatic gain simplifies the design and the installation knowing that the amplifier output is -20 dBm when the LED lights are Green.Amplifier may be coax line powered from either their RF input or RF output connectors. A dedicated power port is also provided.Power Supply is included.Passes DC & 22 kHz/DiSeQcDie Cast Aluminum Case for Indoor or Outdoor Installation.Specifications:ATSC / Ka/Ku bandwidth ......................... 54 to 2150 MHzAutomatic Gain ..................................22 dB input windowDC & 22 kHz/DiSeQc passing ...................... low insertionIndoor / Outdoor case ......................... die cast aluminumLED Signal Metering ................ Blinking Red, Green, RedSystem Impedance: 75 ohmIsolation Satellite to Satellite Ports >35dBInput Return Loss >10dB6 Inputs and 6 OutputsF Type ConnectorsSpec Sheet: Tags: tamp6_6r03, directv trunk amplifier, sonora design satellite amp, auto gain trunk amp, directv l band, directv swm amplifier
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
