Description

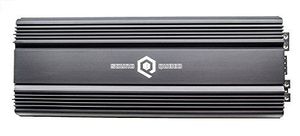

SOUNDQUBED Q1-4500.1 1 OHM STABLE MONOBLOCK AMPLIFIER

Capable of up to to 7500 watts @ 1 Ohm @ 18V if you want to push your system to the limit. You can strap a pair of Q1-4500.1 amps for a woofer-busting 15,000W @ 2 Ohm. Built with the very best parts money can buy, the Q1-4500.1 offers the best watt per dollar value in its power range.

DESIGN FEATURES

The Q1-4500D.1 is fully stable down to 1 Ohm.
Daisy Chain connection of two Q1-4500D.1 stable down to 2 Ohms
Four-way protection circuits: Speaker shorts, DC offset, High/Low voltage, Thermal protection
High current MOSFET switching devices
24db/oct slope crossovers, Fully adjustable Low Pass Filter and Subsonic Filter
Remote Gain Knob with clipping indicator

Specifications:
Model Q1-4500D.1
Digital Monoblock 1 ohm stable
Input Sensitivity 0.2V ~ 5V
Variable Low Pass Filter 20Hz ~ 200Hz @ 24dB/Slope
Subsonic Filter 10Hz ~ 50Hz @ 24dB/Slope
2 amp linkable connection Output Master / Input Slave
Clipping Display Led On Remote Gain Control
Signal to Noise Ratio 85dB
Damping Factor 250
Efficiency 85% at 4 ohm
External Fuse Rating 400 Amp in-line, 800 for pair
Tested Voltage 14.4V
Working Voltage 9.5V ~ 18.5V**
4 ohm power @ 14.4V @ 1% THD 1400W x 1
2 ohm power @ 14.4V @ 1% THD 2280W x 1
1 ohm power @ 14.4V @ < 1% THD 4560W x 1
1 ohm Power @ 16V** @ 1% THD 5500W x 1
1 ohm Power @ 18V** @ 1% THD 6900W x 1
1 ohm Power @ 18V** @ 10% THD 7546W x 1
Dimensions (mm)657.2mm (L) x 241.3mm (W) x 66.7mm (H)
Dimensions (in) 25.875in (L) x 9.5in (W) x 2.625in (H)

SoundQubed Q1-4500.1 4500W RMS Single-Channel (Monoblock) Class D Car Audio Amplifer with Remote Gain Control

Get price

Current Price

$734

Average

$683.47

Min Price

$471.82

Max Price

$799

Price dynamics

Description

SOUNDQUBED Q1-4500.1 1 OHM STABLE MONOBLOCK AMPLIFIER

DESIGN FEATURES

The Q1-4500D.1 is fully stable down to 1 Ohm.
Daisy Chain connection of two Q1-4500D.1 stable down to 2 Ohms
Four-way protection circuits: Speaker shorts, DC offset, High/Low voltage, Thermal protection
High current MOSFET switching devices
24db/oct slope crossovers, Fully adjustable Low Pass Filter and Subsonic Filter
Remote Gain Knob with clipping indicator

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

[Music] what's up guys we're at jones subwoofer solutions again today i have the sound cubed 4500 monoblock amplifier on the dyno and we will see what kind of dyno power it has today this was a used amp as you can tell it's got some wear on it a customer provided this to me i don't have any of the packaging but i did look it up the met the manual online says that it does 750 watts at 4 ohms 2 280 watts at 2 ohms and 4 560 watts at 1 ohm all rated at 14.4 volts so we'll see if we can match that today and if not what exactly this amp will do so drop your guesses below i do have it hooked up with our dual inputs and uh we'll see we'll see what it'll do so drop your guesses and i'll catch you on the dyno [Music] all right so here we are on the dyno i'm going to start with uh certified then we'll do uncertified and then we'll do dynamic and we're going to start with 4 ohm then 2 ohm then we'
