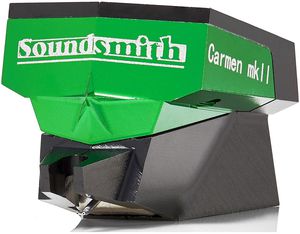

Soundsmith Carmen mk II ES Series Hand-Made High-Output Phono Cartridge
Current Price
$999.95
Average
$999.95
Min Price
$999.95
Max Price
$999.95
Description
The upgrade is far more than cosmetic; the new shape is a departure from the reflective and "boxy" design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely effecting performance. Peter says, "Think of how singing in an open field compares with singing in a shower." Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development. Cartridge Type Fixed Coil Stylus Type Elliptical Output High Available As Dual Coil Mono Yes Additional Specifications Stylus: Nude Elliptical, 0.120mm SQ Radius of curvature: 6 x 17 μm Cantilever: Aluminum Alloy Recommended tracking force: 1.3 - 1.6 gm (standard medium Compliance); 1.0 - 1.2 grams for special order High Compliance Effective tip mass: 0.35 mg Compliance: 28 μm/mN (high), 22 μm/mN (medium) Frequency response: 20-20,000 Hz ± 2.5 dB Channel separation (stereo only): 1000 Hz >26 dB, 50-15,000 >20 dB Channel difference: <1.6 dB (Stereo), <1.0 dB (Mono) Output voltage: 2.12 mV Cartridge weight: 6.8 grams Stylus to Mounting Hole Offset: ≈ 10mm (0.4") Loading: ≥ 47 kΩ
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
