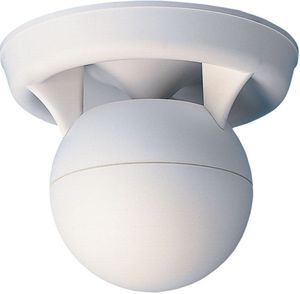

The Soundsphere Model 110B loudspeaker was designed to provide clear voice announcements, seamless background music and even, omnidirectional coverage. The Model 110B is a compact, unobtrusive speaker that is just 10" in diameter and offers fast distributed system installation. Applications include retail stores; factories and warehouses; mass transportation centers; restaurants; and stadium and arena concourses, gift shops and rest rooms

• Hemispherical coverage pattern
• Accurate, full-range voice announcements
• Light weight enables many varied mounting possibilities
• Fully assembled and ready to mount
• Hanging or sur face mount

• System Type: 6-1/2" (165 mm) full range
• Impedance (nominal): 4 ohms
• Sensitivity dB @ 2.83 V/1m: 96 dB
• Sensitivity dB @ 1 W/1m: 93 dB
• Frequency Response (- 3 dB): 220 Hz - 18 kHz
• Frequency Response (-10 dB): 100 Hz - 20 kHz
• Max. Continuous Peak Power: 70 W
• Max. Continuous Power RMS: 35 W
• Max. Power SPL @ 1m: 108.5 dB
• Coverage Angle (±6 dB @ 2 kHz): 165°
• Coverage Angle (±6 dB @ 10 kHz): 155°
• Coverage Angle (Avg. 500 Hz - 10 kHz): 170°
• Transducer - Full Range: 6-1/2" (165 mm) treated pulp fiber
• Voice Coil: 1" (25.4 mm)
• Enclosure & Reflector Material: Structural foam polystyrene with rust-resistant hardware
• Inputs: Hard-wire leads
• Height: 11-7/8" (302 mm)
• Diameter: Sphere: 10" (254 mm)/Reflector: 14-7/8" (378 mm)
• Weight: 8 lbs.
