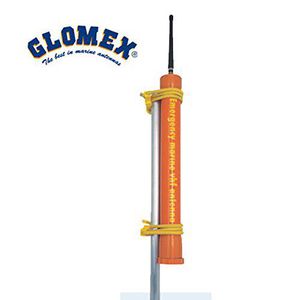

RA114 is an emergency antenna, to be used in case the main antenna is broken or temporarily idle. This small antenna, only 350mm (14") high, is equipped with 9m (30') of coaxial cable and PL259 male connector.

.

Technical Features:

FREQUENCY RANGE 156/162 MHz

GAIN AVERAGE 1 dB

IMPEDANCE 50 ohms

POLARIZATION Vertical

SWR ? 1,3 at 156,8 MHz

MAX INPUT POWER 50 W

DC GROUND No

ANTENNA LENGHT 350mm/14''

ANTENNA WEIGHT 900g/31,74oz

TERMINATION Cable + PL259 male nickel-plated connector twist-on (RA132)

.

Scope of supply

1 Glomex RA-114

.

Original Startechnik
