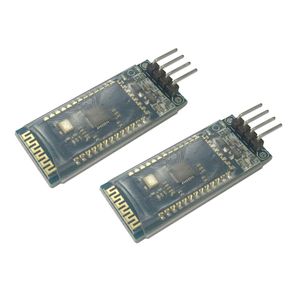

Sunhokey 2pcs BT06 Bluetooth Serial Port Wireless Data Module Compatible With HC-06

okay today in this video we're going to look at the HC 0-6 Bluetooth module now this module is a Bluetooth radio to serial converter so if your project needs to go wireless this might be the solution now if we look on the back we can see the part number it's a JY MCU and you could power to this device with five volts but the TX and rx serial data lines will be at a 3.3 volt level now we look at the front of the board we can see four pins the two pins are the power plus five and ground and other two pins are the serial port which is your TX and rx lines now this this module daeche c0 six is configured as a slave module as opposed to the hc-05 which can be a master or slave and on hc-05 you actually have two more pins you have six pins and it's actually programmed a little bit differently now when you buy this module off the shelf it has certain default settings so next we'll look at thos
