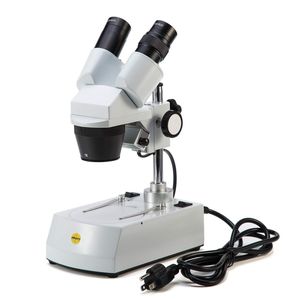

Designed to magnify surface details on solid objects, the Swift S303 Binocular Stereo Microscope is perfectly suited for repairing electronics and circuit boards, examining details on collectible hobby items, engraving, small specimen dissection, and more. Makes a great introductory stereo microscope for elementary school students, with sturdy design elements like locked-on eyepieces.
Say goodbye to squinting with 10X and 30X magnification via two wide-field 10X eyepieces coupled with interchangeable 1X and 3X objective lenses. The upper tungsten bulb provides top-down illumination for viewing solid specimens while the lower bulb shines through the frosted glass plate to provide bottom-up back-lighting for clear objects. Swap out the glass plate for the black/white stage plate (included) for times when you need higher contrast between the specimen and the background.
What can you see with it? Stereo microscopes offer detailed views of solid objects, including coins, gems, or circuit boards. (For viewing transparent slide specimens, use a compound microscope.)
Features:
Locked-On Eyepieces
Backward Pillar Stand
Magnification Levels: 10X and 30X
Built-In Upper/Lower Tungsten Lights
Manufactured under ISO 9001 Quality Control Standard
Specifications:
Head: 45 degree inclined binocular
Wide-field Eyepieces: 10X
Objectives: 1X & 3X
Diopter Adjustment: +/-5dp
Interpupillary Distance: 55-75mm
Working Distance: 57mm
Frosted Glass Objective Plate: 95mm diameter
White/Black Plastic Objective Plate: 95mm diameter
Power Supply: 110V/60Hz or 220V/50Hz
Packing List:
1 S303 Microscope
1 Pair of 10X Wide-field Eyepieces
1 95mm Frosted Glass Plate
1 95mm Plastic Plate
1 Wrench for Focusing Tension Adjustment
1 Pair of Eye-guards
1 Pair of Clips
1 Spare Bulb
1 Dust Cover
1 User Manual
