Description

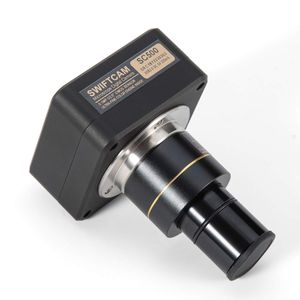

Upgrade your microscope with this Swift 5 megapixel camera! The Swiftcam comes with a variety of mounting options: the reduction lens fits any 23.2mm ocular port and can be adapted for 30 and 30.5mm tubes, so you can use it with a dedicated camera port on a trinocular microscope or in place of an eyepiece on a binocular or monocular model.
Connect the camera to your computer to capture pictures and video. The reduction lens keeps the camera image true to the size and clarity that is viewable through the microscope alone. The kit includes a software CD with the Swift Imaging 3.0 application and calibration slide to ensure accuracy of measurements.
Specifications:
Megapixels: 5.1
CMOS sensor size: 1/2.5"
Frames per second: 90fps at 640x480, 27fps at 1280x960, 7fps at 2592x1944
Responsivity: 0.53V/lux-sec
Dynamic range: 66.5dB
SNRmax: 40.5dB
Compatible operating systems for software:
Windows Vista/7/8/10 (32 and 64 bit)
Mac OS X
Linux
System requirements for software:
CPU equivalent to Intel Core2 2.8GHz or higher
2GB of memory or more
USB 2.0 port
CD-ROM drive
17" display or larger
Packing List:
1 Swiftcam SC500-CK
1 0.5x Reduction lens
Eyepiece adapters: 30mm and 30.5mm
Calibration slide
USB 2.0 cable
Software CD
Quickstart guide
Connect the camera to your computer to capture pictures and video. The reduction lens keeps the camera image true to the size and clarity that is viewable through the microscope alone. The kit includes a software CD with the Swift Imaging 3.0 application and calibration slide to ensure accuracy of measurements.
Specifications:
Megapixels: 5.1
CMOS sensor size: 1/2.5"
Frames per second: 90fps at 640x480, 27fps at 1280x960, 7fps at 2592x1944
Responsivity: 0.53V/lux-sec
Dynamic range: 66.5dB
SNRmax: 40.5dB
Compatible operating systems for software:
Windows Vista/7/8/10 (32 and 64 bit)
Mac OS X
Linux
System requirements for software:
CPU equivalent to Intel Core2 2.8GHz or higher
2GB of memory or more
USB 2.0 port
CD-ROM drive
17" display or larger
Packing List:
1 Swiftcam SC500-CK
1 0.5x Reduction lens
Eyepiece adapters: 30mm and 30.5mm
Calibration slide
USB 2.0 cable
Software CD
Quickstart guide
