Systimax PM-GS3-48 48-Port Gigaspeed XL Patchmax GS3 CAT6 U/UTP Patch Panel

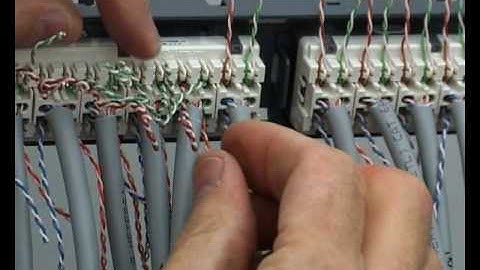

these are the termination instructions for the system x360 eleven hundred GS range of panels together with the 360 patch max GS panel which all share the same termination block the cables should have been stripped at least 75 millimeters or three inches and prepared with the flute and separator tapes removed the key part of this termination procedure is the termination manager there is a tee marked on it and it is from this side the pair should be pushed through push two pairs through each hole and push the termination manager up against the end of the jacket this is the t568b termination order t568a is different looking at the termination manager there are on both sides adjacent to each pair bend each pair over into the adjacent slot the pair should not cross to the other side of the termination manager check each pair here the brown pair is not sitting down tight in the slot twist up
