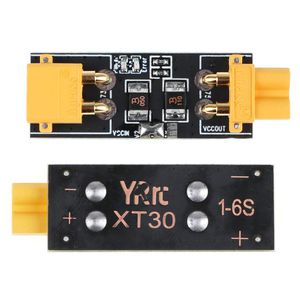

1-6S XT30 Short Circuit Test Plug Fuse Installation Safety Test Plug Head Board Overload Inspecting Short-circuit Protection for RC Drone FPV Racing Drone

Descrption:

Product:XT30 Short Circuit Test Plug

Battery: 1-6s Capable(33v max)

0.5A Hold current,1A Trip Current

1.1A Hold current,2.2A Trip Current

0.5S Trip time

How to use it:

- Green Light means it is ok

- Green Light dim or blinking,it means Fuse tripped.

- Red Light means connection error

- Red Light dim or blinking, it means Fuse tripped

- Optional 0.5A Hold Current, 1A Trip Current

- Optional 1.1A Hold Current, 2.2A Trip Current

Unplug for 10 seconds can reset the Solid State Smoke Stopper.
