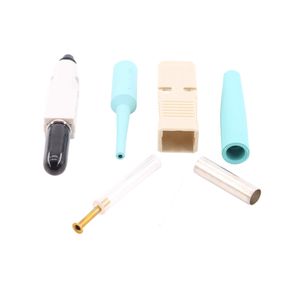

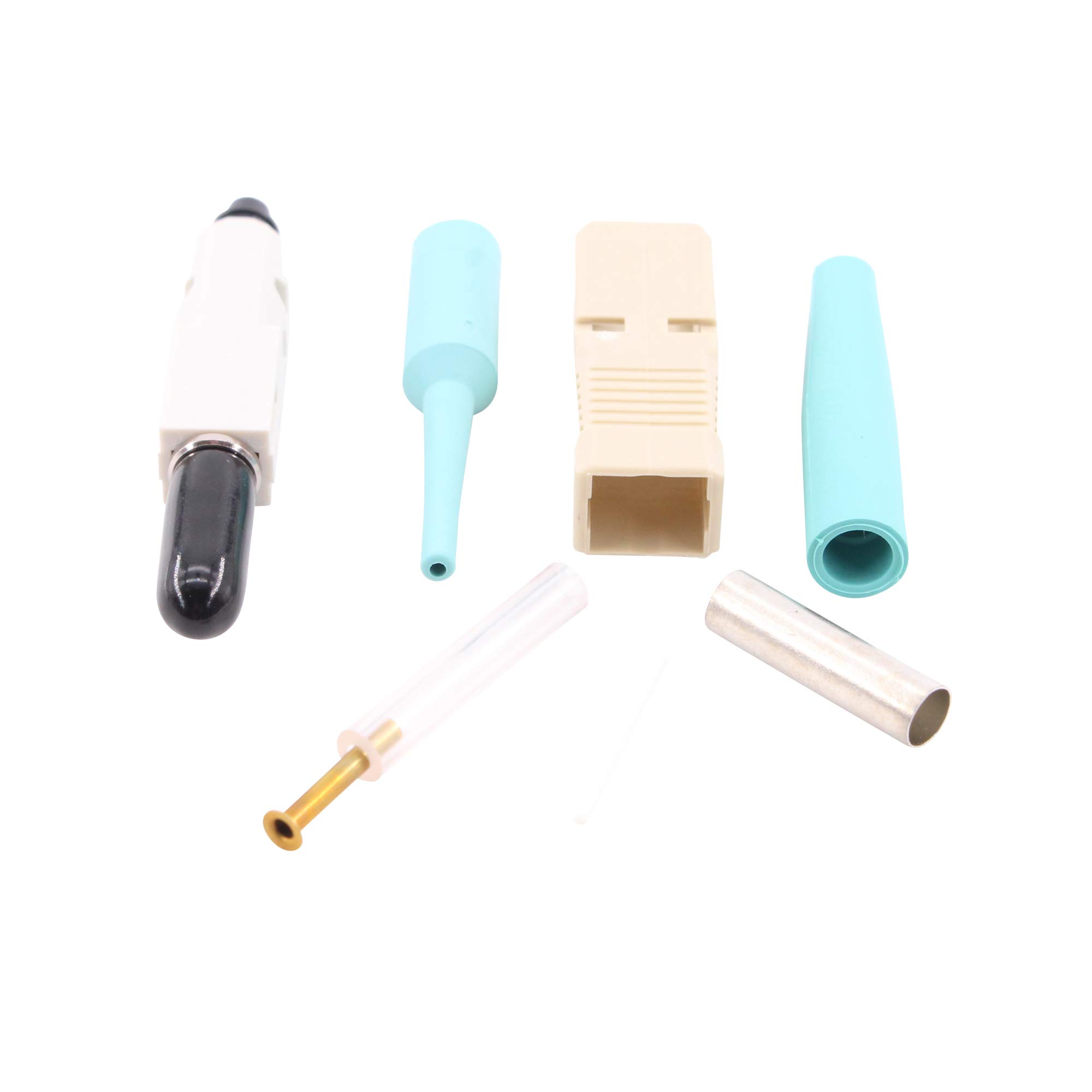

TE Connectivity 6588291-2 Lightcrimp Plus Fiber Optic Connector, OM3, SC, MM, 50um

m-net Connect presents light cream plus fiber-optic quick termination slide the strain relief boot onto cable remove the dust caps from the connector and insert the connector into the cable holder until you hear a click be aware not to lose the front cap put two marks on the buffer you remove the primary and secondary coating from the first mark onwards remove only short parts of approximately five to ten millimeters you clean the fiber with a wipe and pure alcohol beware not to remove the second mark insert the cleaned fiber in the cleaver place the buffer at the mark eight millimeter slide the fiber holder to the right until it stops and gently close the handles slide the block towards yourself to scratch and cleave the fiber open the handles and remove the broken fiber waste push down the button and remove the fiber insert the cable into the wire holder the end of the fiber shall rea
