TE CONNECTIVITY/AMP M20X1.5 EMC CABLE GLAND & LOCKNUT, BRASS, M20X1.5, 12MM,

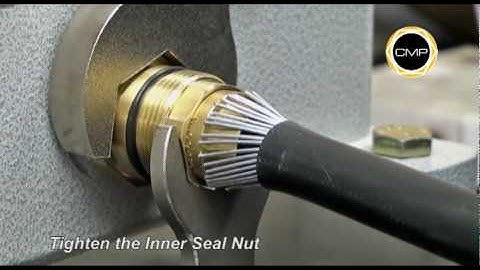

separate the cable gland into four components by loosening assembly a from assembly be assembly a reversible corn anyway clamping ring and assembly B it is not necessary to dismantle a gland any further plus assembly be out to sea on up first over the cable followed by the anywhere clamping ring that anywhere clamping ring cannot be installed incorrectly if required thread seal shall be fitted over the gland entry thread at this stage tighten assembly a into the equipment with a spanner determine the conductor length that will be required to suit the equipment geometry and carefully cut through the outer sheath and the armor wires to remove them it is recommended that the armor wires are cut with a hacksaw until they are almost severed care should be taken not to cut through the wires into the inner sheath the armored wires can then be twisted and removed easily measure and Mark the req
