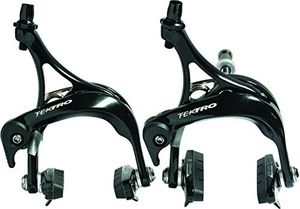

Tektro R540 Pair Black 39-51Mm Reach Brake Road

caliper brakes are a classic brake style found mostly on road and city bikes when they're set up properly they work great and here's how to set yours up to work perfectly if it's not attached already put the caliper pivot bolt through the hole at the top of the fork using a 5 millimeter allen wrench tighten the nut from the backside of the fork if you need to install the brake cable pull the brake lever to the bar and thread the end of the cable through the cable holder shown here until it shows up at the end of the cable housing pull the end of the cable and make sure the head of the cable is fully seated in the holder flip the release lever up and feed the cable through the pinch bolt double checking to make sure the cable housing is seated into the barrel adjuster squeeze the brake arms toward each other and tighten the pinch bolt when there's just enough room to be able to take the
