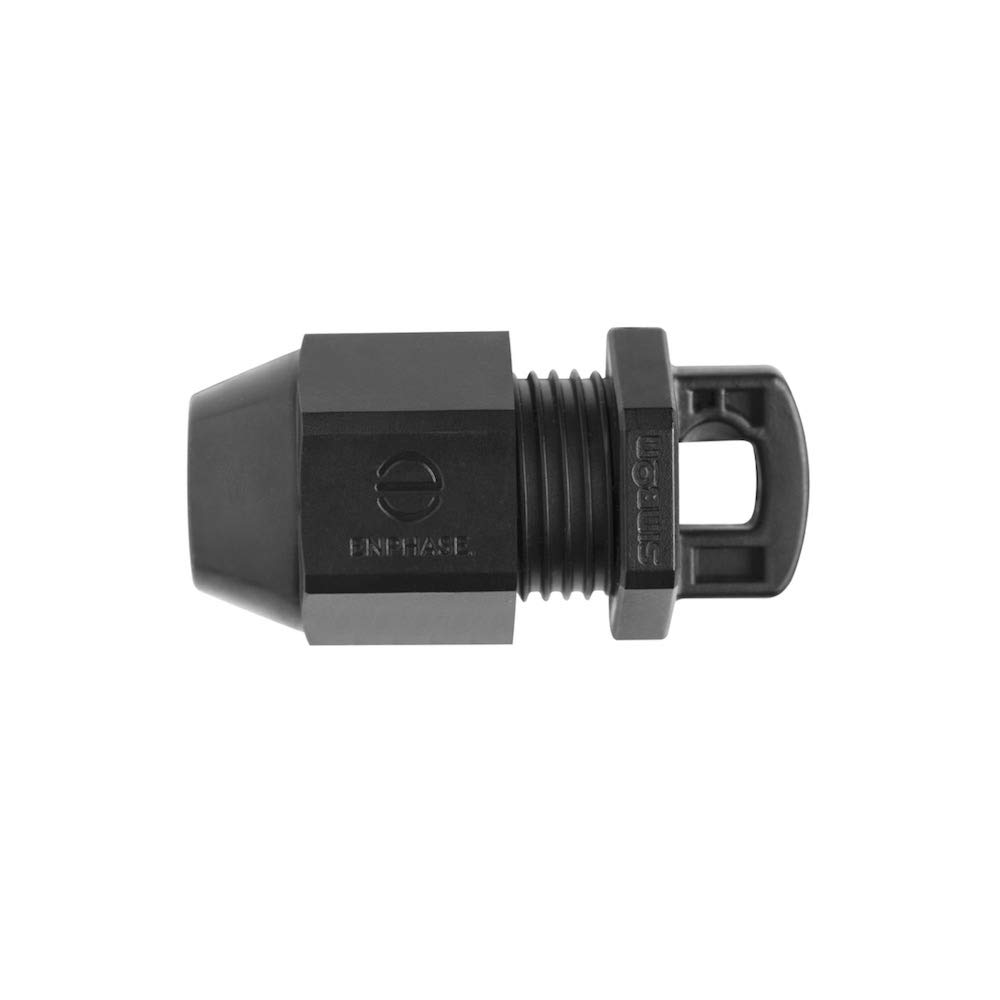

Enphase Q-TERM-10 Terminator Cap for Unused Cable Ends for Enphase Q Cable

In this video, we'll demonstrate how to assemble the Enphase Q Cable Terminator. Each branch circuit requires you to terminate and seal at least one end of the unused cue cable. Before installing the Q Cable Terminator, we recommend reading the Enphase IQ6 and IQ6+ Microinverter Installation and Operation Manual on Enphase.com. Let's start by getting familiar with the terminator parts that you will need for assembly. This is the terminator body. This is the grommet that fits inside the Terminator body. And this is the hex nut. Now let's assemble. Using the Terminator loop to measure, remove 13 millimeters or 1/2 inch of the cable sheath from the conductors. Slide the hex nut onto the cable. Insert the cable into the Terminator body so that each of the two wires land on opposite sides of the internal separator. The grommet inside the Terminator body should remain in place. Verify that t
