This backup camera kit is best fit for the vehicle less than 33ft(10m), such as Class C Motorhome(<26ft), Class B Motorhome,Cargo Van,Box Truck(<26ft),Flatbed Truck(<26ft), Bucket Truck, Tractor, School Bus(<26ft) (no included the fifth-wheel,semi-truck)
Before install this wireless backup camera system, please read the manual in the package carefully.
Generally, in order to fix the camera, the installation of the camera needs to drill holes in the rear of the vehicle with an electric drill.
If you have any other problems, please contact us [service@veclesusclub.com]

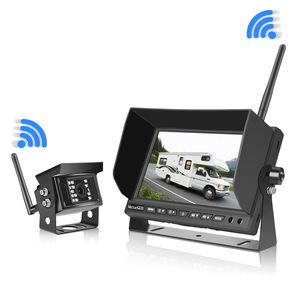

Product Information:
Camera built-in speaker
Removable wide sunshade
Horizontal viewing angle: 100 degree
Diagonal viewing angle: 120 degree
Resolution: 800*RGB*480
OSD menu, Remote Control
Power Supply: DC 9~36V
Screen: 7-inch LCD digital panel
System: PAL&NTSC automatically
Product Dimensions: 1.19*0.86*0.35in
Audio/video input: 1 Audio & Video input, wireless signal input
Package Contents:
1 * User manual
2 * Short antenna
1 * Remote control
1 * U-shaped bracket
1 * Suction cup bracket
1 * Wireless car monitor
1 * Wireless backup camera
1 * Extension antenna cable
1 * Car charger cord(8.2ft)
1 * Standard power cable (8.2ft)
1 * DC 5.5 power cable for camera
FAQ:
Will I be able to install this camera system myself?
Many people do have the handiness to install our systems without having to hire assistance. Otherwise we recommend professional installation as they can guarantee that the system is installed correctly.
How do the system receives power?
This system can be worked in 9-36V, the monitor receives this either from the cigarette lighter or straight from the vehicle's fuse box, and the camera, you can wire it to stay on as long as the vehicle is on or to come on only in reverse.
