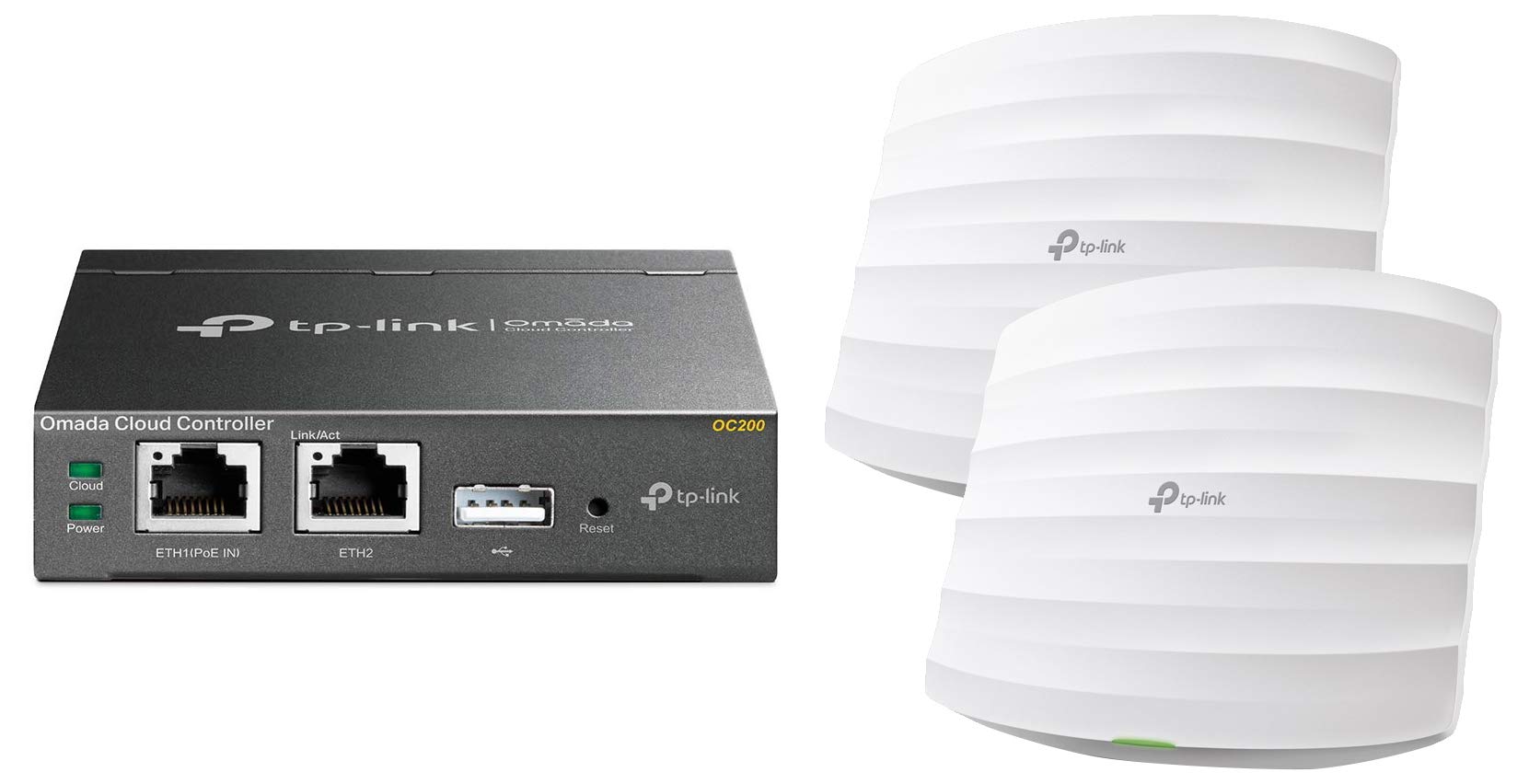

TP-Link OC200 Omada Cloud Controller - Supports 802.3AF/At with EAP225 V3 Wireless Gigabit Ceiling Mount Access Point, Supports PoE and Passive PoE(Injector Included)

hi everyone in this video we'll demonstrate how to install and configure an EAP in your office or home first let's take a look at a typical network topology the AAP receives data and power from a POS which a computer is required for management and a router for internet access included in ELP packaging are one EAP one power adapter three mounting kits and an installation guide as an example here are the steps for ceiling mounting first remove the ceiling tile next place the mounting bracket at the center of the tile mark four positions for the screw holes and one for the ethernet cable to feed through juror holes are four millimeters in diameter for the screws and a 10 millimeter hole for the ethernet cable secure the mounting bracket to the ceiling tile using the screws washers and wing nuts provided feed the ethernet cable through the hole and replace the ceiling tile connect the ether
