Description:

- Using High quality tpa3116d2 digital power amplifier chip

- With good sound quality, high efficiency, strong power amplifier.

- 50W*2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.

- Powered by DC 12-24V, wide input voltage.

- User can adjust the volume by themselves easily.

Specification:

- Supply Voltage: DC 12-24V

- Chip: TPA3116D2*2

- Channel Type: 3 Channels(Left Channel, Right Channel, Subwoofer)

- Output Power: 50W*2 + 100W*1 Subwoofer

- Output Match: 4-8 ohm

- Frequency Response Range: 14-100KHz

- SNR: 100dB

- Switching Frequency: 1.2MHz

- Size: Approx. 100x 70x 30mm/ 3.94x 2.76x 1.18inch

Package Includes:

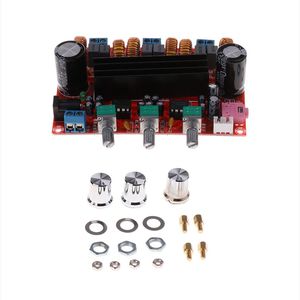

1 Piece Digital Subwoofer Power Amplifier Board

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.
