Description
Description:

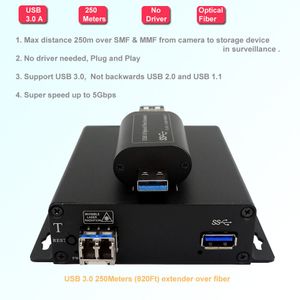

BY-USB-396DF includes a transmitter(client-side) and a receiver(host-side), which can extend the Superspeed USB 3.0 to a remote location over 2 core fiber cable, max distance 250 Meters (SM or MM fiber).
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).
3.HD video surveillance system.
4.High - speed data acquisition system like FMC & TFM.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8. VA/VR systems, Kinect devices & Leap Motion devices.
Note:
Compatible Devices: USB 3.0 Devices like Industrial Camera, H-Speed Printer, Kinect Devices & Leap Motion device etc, but Not backwards compatible with USB 2.0 and USB 1.1 devices
SPECIFICATION:
Optical:
Connector:Duplex LC
Wavelength: 1310nm
Support Fiber types: 50/125μm, 62.5/125μm, 9/125μm
Physical:
Size (L× W ×H): 1) Transmitter: 104 x 104 x 28 mm ; 2) Receiver: 51 x 33 x 17.5 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
Power Voltage: 5V DC
sender power consumption:<5W
receiver power consumption:<5W
Environment:
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)
Package:
1. 1 x transmitter (client side) with SFP optical module.
2. 1 x receiver (host side) with SFP optical module.
3. 1 x Power Adapter DC 5~12V with US/EU/UK/AU plug.
4. 1 x Manual.
About shipment:
Once order received, we will worldwide deliver within 1~2 days by DHL for 1 week arrival
