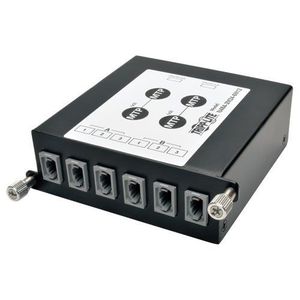

Tripp Lite's N484-2M24-6M12 is a High Density 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120 Gbe, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE-802.3ae maximum channel loss spec of <25db. Effectively trunks 48-fibers between IDF's and MDF's with (x2) 24-Fiber MTP/MPO cables, breaking out to (x6) 12-fiber MTP/MPO connections. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.

• High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'
• 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Type B adapters ( Key up to Key up ) on 12-Fiber side
• Type A adapters ( Key up to Key down ) on 24-Fiber side
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fiber Channel) requirements
• Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
• Each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations
• Housing made of heavy duty, 1.0mm Cold Rolled Steel
• Includes dust caps for unused ports
• Lifetime limited warranty
