Intelligent Barcoding
Some barcode solutions only add fonts to a PC or printer, however BarDIMM Pro actually extends the PCL5 language. BarDIMM Pro performs barcode formatting, error detection, and checksum calculation thus reducing the load on the host. Barcodes can be printed in almost any size, rotation, bar width, or height. Caption text can be embedded in the bars or printed above or below the bars in a variety of fonts and sizes.

Supported Barcodes
1D Barcodes: RSS14, UPC-A/E, EAN-8/13, Code 39, Ext Code 39, Code 93, Ext code 93, 25 Interleaved, 25 Industrial, 25 Matrix Code 128, EAN/UCC 128, Codabar, Monarch, MSI Plessey, OCR-A/B
2D Barcodes: PDF 417, Macro PDF 417, AZTEC, UPS Maxicode, DataMatrix, QRCode, Codablock-F, RSS CC-A, CC-B
Postal Barcodes: ZIP+4 Postnet, USPS Tray and Sack, USPS Zebra, UK Royal Mail RS4CC, Danish/French/German Postal Barcodes, Singapore/Australia Post 4state barcodes
OMR Codes: Vertical and horizontal marks for most automatic folding/insertion machines

Simple to Install

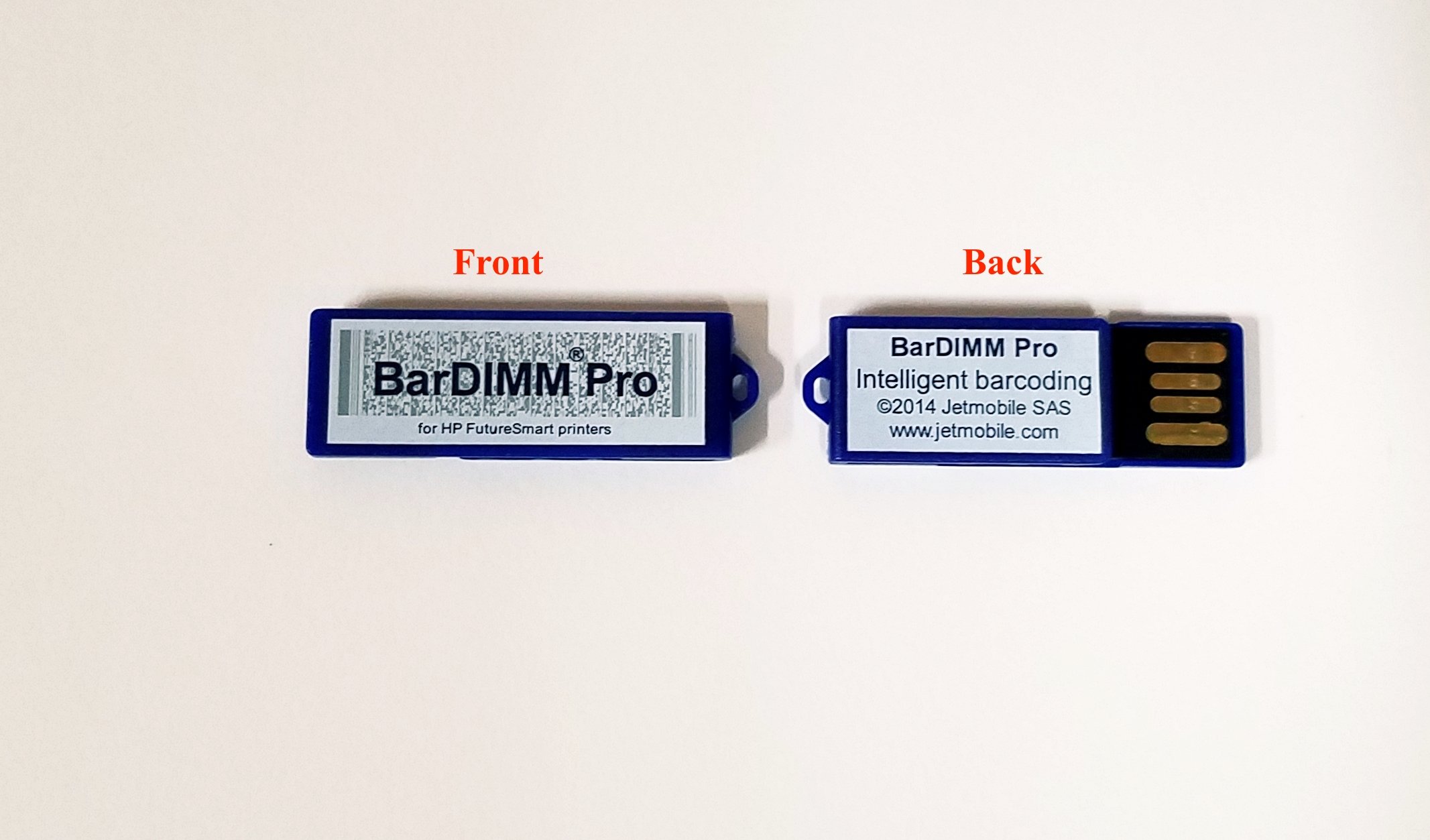

BarDIMM Pro plugs directly into the printer, does not require a PC or server and requires no configuration.

Supported Devices
LJ M506, LJ M525, LJ M527, LJ M551, LJ M552, LJ M553, MFP X555, LJ M575mfp, LJ M577mfp, MFP X585, LJ M601, LJ M602, LJ M603, LJ M604, LJ M605, LJ M606, LJ M607, LJ M608, LJ M609, LJ M630mfp, LJ M631mfp, LJ M632mfp, LJ M633mfp, LJ M651, LJ M652, LJ M653

Regulation
WEEE and RoHS compliant

SecureJet®, BarSIMM® and BarDIMM® are registered trademarks of the Jetmobile SAS Corporation. Jetmobile® and JetCAPS® are registered trademarks of the JetCAPS International Business Strategy SAS Corporation.
