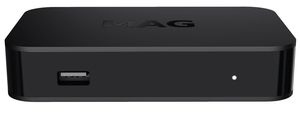

The MAG420W1 has a built-in 802.11 b/g/n standard Wi-Fi module. This set-top box can be connected to the Internet wirelessly; no cables or additional accessories are necessary.

Hardware

• Chipset: Hi3798MV200
• Processor: ARM Cortex-A53 Quad Core CPU 1200 MHz
• Performance: 15 000 DMIPS
• RAM: 512 Gb
• Flash memory: 512 MB NAND

Software

• Operating System: Linux 4.4.35
• Middleware Supported: Ministra Multiscreen TV platform

Interfaces

• RCA 3.5 mm, HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Wi-Fi 1T1R n

Sources of media content

• PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB devices

Audio & video

• Audio сodecs: MPEG L1/L2/L3, Dolby Digital Plus, AAC-LC, HE AAC V1/V2, APE, FLAC
• Audio formats: .ac3, .acc, .ape, .flac, .m4a, .mp3, .ogg, .wav, .wma
• Video modes: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
• Video сodecs: MPEG1/2 MP@HL, MPEG4 part 2 (ASP),H.265 Main/Main 10@L5.1 High 2160p@60 fps, H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
• Video containers: .TS, .AVI, .MPEG, .MP4, .WMV, .MOV, .MKV, .M2TS, .VOB
• Image formats: JPEG, PNG, BMP, GIF, RAW
• Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed captions
• Playlist formats: M3U, M3U8, PLS, CUE

Standard set

• MAG420w1 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
