Description
Features:
High sensitivity, low operating current, single DC power supply, stable performance.
Anti-metal shielding, advanced anti-crash circuit design, anti-surge protection, anti-missing protection.
Use pure digital imported RF base station chip, no error code. Intelligent sound and light control mode.
Super bright indicator.
The buzzer sounds clear and loud, and will not be disturbed. Long transmission distance, Weigand (100 meters).
Wiring method in line with international standards.
Use glass discharge tube and semiconductor discharge circuit, multi-level lightning protection, 15KV electrostatic shock resistance.
Transmission method: Wiegand, RS232 real-time transmission mode. (RS485 addressing mode transmission).
Specification:
Condition: Brand New
Model: KA-CJ01
Optional Card Reading Type: 125Khz ID, 13.56Mhz IC
Type: RF Card Reader
Model: Ka-js01
Operating Frequency: 13.56 Mhz /125Khz
Sensing Distance: 3 - 8cm
Operating Voltage: DC5-16V, Standard DC 12V Working Current < 50mA
Card Reading Speed: < 0.2 Seconds
Card Reading Interval: <0.5 Seconds
Working Temperature: -25°C-85°C
Working Humidity: 10% - 90%
Size: Approx. 85 x 85 x 10mm/3.3 x 3.3 x 0.4in
Color: Silver
Material: Metal
WG26/34 Wiring:
Red Line: DC12V
Black Line: GND
Green Line: D0
White Line: D1
Blue Line: LED
Yellow Line: BEEP
Grey Line: WG26/34
RS485 Wiring:
Red Line: DC12V
Black Line: GND
Green Line: 4R+
White Line: 4R-
RS232 Wiring:
Red Line: DC12V
Black Line: GND
Green Line: RX
White Line: TX
Package List:
1 x RFID Card Reader
1 x Screwdriver
1 x Wire Harness
1 x Manual
High sensitivity, low operating current, single DC power supply, stable performance.
Anti-metal shielding, advanced anti-crash circuit design, anti-surge protection, anti-missing protection.
Use pure digital imported RF base station chip, no error code. Intelligent sound and light control mode.
Super bright indicator.
The buzzer sounds clear and loud, and will not be disturbed. Long transmission distance, Weigand (100 meters).
Wiring method in line with international standards.
Use glass discharge tube and semiconductor discharge circuit, multi-level lightning protection, 15KV electrostatic shock resistance.
Transmission method: Wiegand, RS232 real-time transmission mode. (RS485 addressing mode transmission).
Specification:
Condition: Brand New
Model: KA-CJ01
Optional Card Reading Type: 125Khz ID, 13.56Mhz IC
Type: RF Card Reader
Model: Ka-js01
Operating Frequency: 13.56 Mhz /125Khz
Sensing Distance: 3 - 8cm
Operating Voltage: DC5-16V, Standard DC 12V Working Current < 50mA
Card Reading Speed: < 0.2 Seconds
Card Reading Interval: <0.5 Seconds
Working Temperature: -25°C-85°C
Working Humidity: 10% - 90%
Size: Approx. 85 x 85 x 10mm/3.3 x 3.3 x 0.4in
Color: Silver
Material: Metal
WG26/34 Wiring:
Red Line: DC12V
Black Line: GND
Green Line: D0
White Line: D1
Blue Line: LED
Yellow Line: BEEP
Grey Line: WG26/34
RS485 Wiring:
Red Line: DC12V
Black Line: GND
Green Line: 4R+
White Line: 4R-
RS232 Wiring:
Red Line: DC12V
Black Line: GND
Green Line: RX
White Line: TX
Package List:
1 x RFID Card Reader
1 x Screwdriver
1 x Wire Harness
1 x Manual

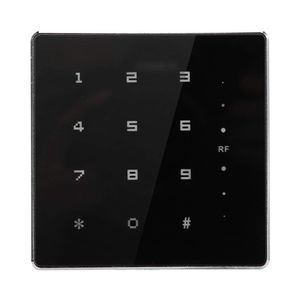

Ultrathin Waterproof RF RFID Card Reader Access Control Keypad Wiegand26/34 for Access Control System(13.56Mhz IC Card)
