Overview

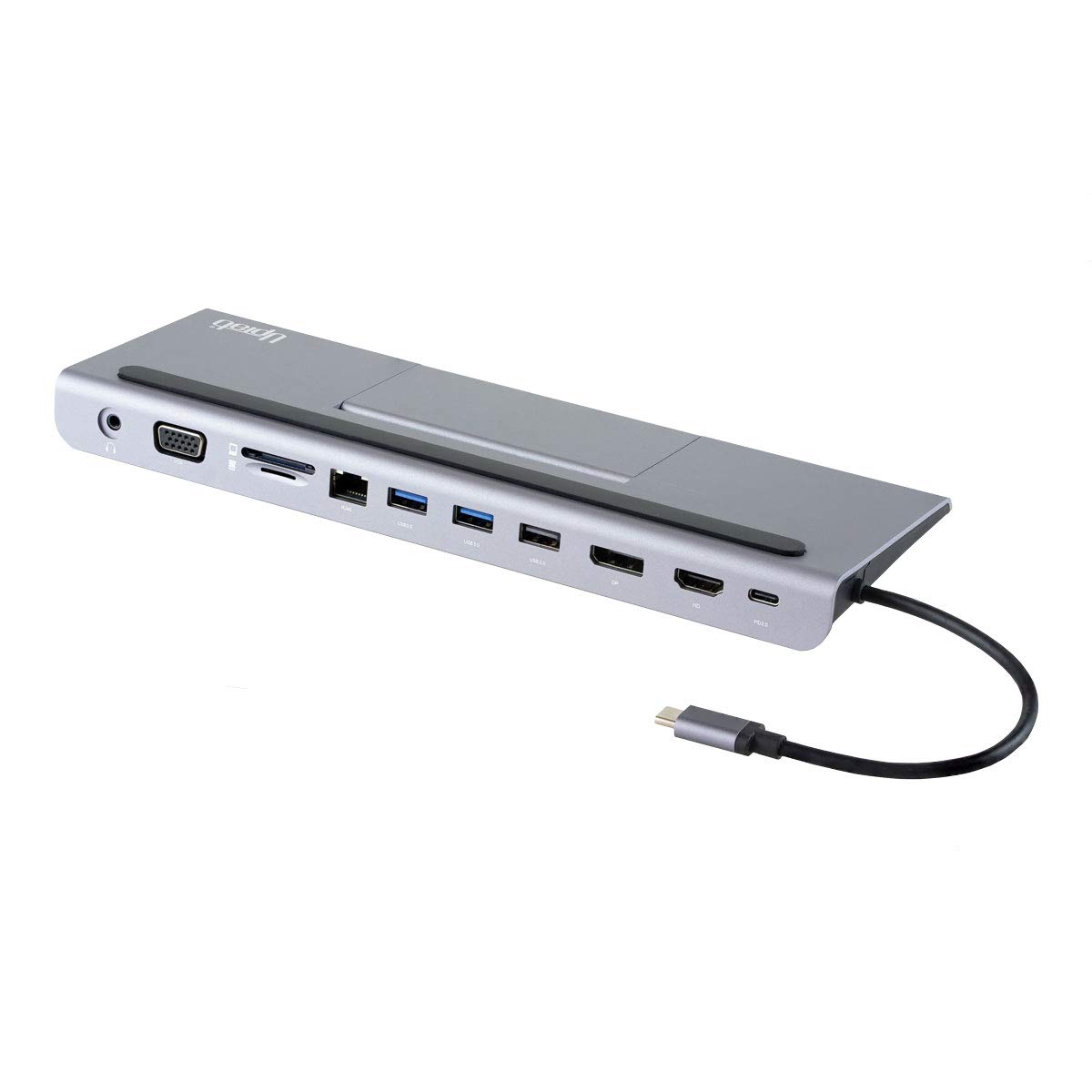

UPTab is adding the perfect companion to your laptop with USB C or Thunderbolt 3 Port and turn it into a complete workstation. This docking station is equipped with memory card readers for SD/MicroSD memory cards for quick access to your data. With a Gigabit Ethernet port for LAN connectivity. This docking station also offers DisplayPort delivering UltraHD 4K, HDMI delivering UltraHD 4K and VGA ports for a high-definition display monitor, and its power delivery pass-through conveniently charges your connected laptop. You can also connect a headset or microphone to complete your multimedia workstation setup.

• DisplayPort: resolution up to 3840 x 2160 / 30Hz.
• HDMI port: resolution up to 3840 x 2160 / 30Hz.
• VGA port: resolution up to 1920 x 1200 / 60Hz.
• HDMI+DisplayPort: resolution up to 4Kx2K@30Hz. MIRROR mode only, laptops have a different graphic with 2 external monitors
• DisplayPort+VGA: Resolution up to 1920x1080P@60Hz. MIRROR mode only, laptops have a different graphic with 2 external monitors
• DisplayPort+HDMI, HDMI+VGA, DisplayPort+VGA) max resolution up to 1920x1080P/60Hz with Multi-Stream Transport (MST) technology.
• Three video output DisplayPort+HDMI+VGA) max resolution up to 720P/60Hz with Multi-Stream Transport (MST)

Specifications:

• Input: USB C (Type-C) or Thunderbolt 3
• 1x USB-C Female Power Delivery (PD) to your Laptop at 100W (20V 5A)
• 1x HDMI maximum resolution 4K at 30Hz
• 1x DisplayPort 1.2 maximum resolution 4K at 30Hz
• 1x USB 2.0 max data transmission up to 480Mbp
• 2x USB 3.0 (5Gbps) and support BC1.2 quick charge with max power at 5V 1.5A
• 1x Gigabit Ethernet Port (RJ45)
• 1x SD/TF Card Reader compliant with SD3.0
• 1x MicroSD Card Reader
• 1x VGA
• 1x 3.5mm Digital audio output for Headphones or Audio Mixer.
• 1 Year Warranty
