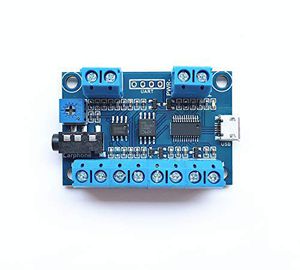

Description
Features:
- Uses a micro USB port to directly plug into the USB port of PC for easy use of the sound module.
- Built-in an 8MB flash memory, which is able to store a total of about 8 minutes long MP3 files of
- Supports earlier Windows, Windows 10, and Mac operating systems
- Support audio format: MP3 and WAV
- Able to play multiple audio files on per button.
- Built-in a class D 3Watts amplifier IC and a 3.5mm audio
- Directly drives a 0.5Watts to 3Watts (4ohms to 8ohms) speaker
- Volume is adjustable through adjusting the blue potentiometer
- Built-in headphone output for easy use if the external speaker is not something that will work with your project.
- 4-Key Operations with 7 Triggering Modes
- 0: Short press the button to start playing, and during playing, if you press the button again, the playback will be interruptible and it will play from the beginning.
- 1: Press the button and hold to start playing repeatedly, and when the button is released the board stops playing.
- 2: Short press the button to start playing, and during playing, if you press the button again, the playback will be NOT interruptible.
- 3: Short press the button to start playing repeatedly and press the button again to stop.
- 4: Press the button and hold to start playing once, and when the sound file goes to the end, the board stops playing.
- 5: Interruptible and switches to the next sound file.
- 6: Uninterruptible
Datasheets:
- http://www.electronics123.net/amazon/datasheet/FN-T418%20MP3%20Player%20Sound%20Module.pdf
- www.electronics123.com/page/faq-fn-t418
USB Recording Module (Multi Sound Files per Button) with Buttons, Speaker and Battery Box
Current Price
$29.95
Average
$29.95
Min Price
$29.95
Max Price
$29.95
Price dynamics
0%
Description
Features:
- Uses a micro USB port to directly plug into the USB port of PC for easy use of the sound module.
- Built-in an 8MB flash memory, which is able to store a total of about 8 minutes long MP3 files of
- Supports earlier Windows, Windows 10, and Mac operating systems
- Support audio format: MP3 and WAV
- Able to play multiple audio files on per button.
- Built-in a class D 3Watts amplifier IC and a 3.5mm audio
- Directly drives a 0.5Watts to 3Watts (4ohms to 8ohms) speaker
- Volume is adjustable through adjusting the blue potentiometer
- Built-in headphone output for easy use if the external speaker is not something that will work with your project.
- 4-Key Operations with 7 Triggering Modes
- 0: Short press the button to start playing, and during playing, if you press the button again, the playback will be interruptible and it will play from the beginning.
- 1: Press the button and hold to start playing repeatedly, and when the button is released the board stops playing.
- 2: Short press the button to start playing, and during playing, if you press the button again, the playback will be NOT interruptible.
- 3: Short press the button to start playing repeatedly and press the button again to stop.
- 4: Press the button and hold to start playing once, and when the sound file goes to the end, the board stops playing.
- 5: Interruptible and switches to the next sound file.
- 6: Uninterruptible
Datasheets:
- http://www.electronics123.net/amazon/datasheet/FN-T418%20MP3%20Player%20Sound%20Module.pdf
- www.electronics123.com/page/faq-fn-t418
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
it's time for another cool tool review this time we're gonna take a look at this greeting card sound module there's a bunch of dirt cheap variations of this out there but this fancy one cost me $9 on Amazon and it is a straightforward way to add sound to your project sometimes you're making a thing and you wanted to make a sound when it's pressed or turn door opened and you'd think that would be an easy thing to do but it can get surprisingly complicated and expensive to pull off one way to keep it simple is this pre-wired sound player module it comes with a speaker and a button already wired up plus wires to connect up a jack for a 5 volt power adapter or you can also do what I did here and wire up a three point seven volt rechargeable lipo battery or an 18-6 50 battery to the three point seven volt connections here now there are a lot of cheap voice recorder modules out there and I pl
